Power Supplies

This safe, reliable power supply is lightweight and robust. It features short-circuit protection, overload protection with automatic reset, and thermal cut-out. Regulated DC with a simple rotating switch to select the voltage, as well as an on/off switch. Output is via colour-coded terminal sockets. The selectable output voltage wheel ranges from 3 V, 4.5 V, 6 V, 7.5 V, 9 V and 12 V. Conforms to CE:EN61010-2010

This safe, reliable power supply is lightweight and robust. It features short-circuit protection, overload protection with automatic reset, and thermal cut-out. Regulated DC with a simple rotating switch to select the voltage, as well as an on/off switch. Output is via colour-coded terminal sockets. The selectable output voltage wheel ranges from 3 V, 4.5 V, 6 V, 7.5 V, 9 V and 12 V. Conforms to CE:EN61010-2010

The Spider power supply has been specifically designed for primary, middle and lower secondary school use. Offering 1.5, 3, 4.5 or 6 V smoothed and regulated DC at up to 1 A, it is the ideal next step from using cells and batteries. Four sets of terminals mean it can be used by four groups simultaneously enabling children to connect a multitude of low voltage electrical devices with the spider's bright LED's acting as power output monitors. •Manufactured in the UK •No batteries needed •4 x 4 mm output terminals •Compact and safe design •Fun to use

A compact power supply offering 2, 4, 6, 8, 10, and 12 V at currents of up to 5 A. Both DC and AC outputs may be used simultaneously up to the rated output. The output is protected by a push button cut-out. The unit is 2 A fused on the back panel and comes complete with a moulded mains lead and plug. 4 units are designed to fit in a shallow Gratnell tray. Specification •Input Supply voltage 230 V DC •Supply frequency 50 Hz •Mains fuse Rear panel 2 A, 20 mm quick blow Mains plug 3 A •Output Voltage 2, 4, 6, 8, 10, 12 V AC nominal 1, 3, 5, 7, 9, 11 V full wave rectified DC nominal •Maximum output current 5 A AC or DC •Manufactured in the UK

The Powerlock power supply has both lockable AC and DC outputs ranges by a simple key making it impossible for students to change the voltage. The Powerlock offers 2, 4, 6, 8, 10 and 12 V in both DC and AC. Outputs may also be used simultaneously up to the rated output required. For safety, the output is also protected by a simple push button cut-out. Supplied with 2 keys. •Output voltages AC & DC •2, 4, 6, 8, 10, 12 V range in AC and DC •Current 5 A •Voltage type - Stepped •Output type - Full wave rectified, non-regulated •Push button trip reset •Mains input 230/240 V AC, 50 Hz •Supplied with mains plug and lead •Manufactured in the UK

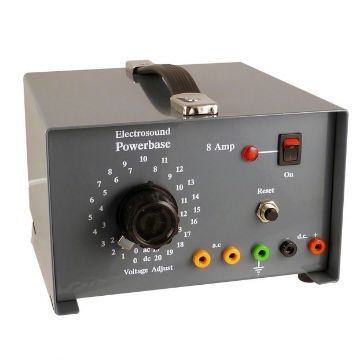

The Powerbase is ideal for use in physics, biology and chemistry experiments in secondary and sixth form schools. It comes with a sturdy, powder-coated steel case with fold flat carry handle making it easily stackable. A very popular power supply that has proven to last the rigours of daily use within schools with its tough construction and tamper proof fixings. •0-15 V AC and 0-20 V smoothed DC at up to 8 A •Combined Continuously variable output •Maximum voltage lock push button reset •Short circuit protection •Tough steel powder coated casing •Heavy-duty screw-in rubber feet •Stackable •Supplied with power lead •Designed and manufactured in the UK •5 Year Warranty

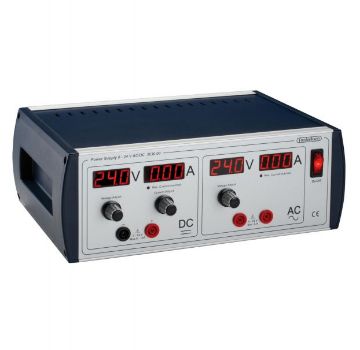

A highly versatile power supply for all low-voltage experiments, with continuous voltage adjustment, separate for DC and AC. The two outputs can be loaded simultaneously without interference. Four digital displays show DC and AC voltage and current. The continuously adjustable DC current limiter can be set using a screwdriver. There is an LED indicator to show when the selected maximum current is reached. The power supply also features electronic overload protection. Specifications DC Output voltage: 0-24 V (stabilised) Ripple and noise (max): 25 mVpp Output current (max): 10 A (0-12 V) Max output current falls linearly to 6 A at 24 V Electronic, continuously adjustable current limiter, adjusted with screwdriver AC Output voltage: 0-24 V (stabilised sine) Output current (max): 6 A Electronic current limiter

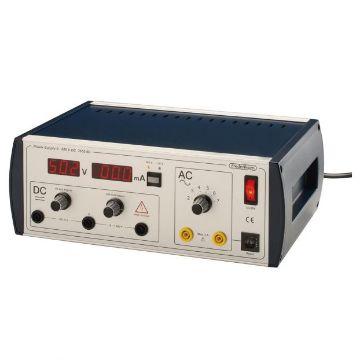

The perfect choice for experiments with, for example, electron beam tubes requiring voltages up to 500 V DC at a low current level. The unit also provides two auxiliary outputs: A continuously variable negative voltage (down to -50 V DC), series connected with the 500 V output, and a stepwise selectable AC voltage with galvanic isolation from the DC outputs. Continuous adjustment of the -50 V and 500 V voltages. The current is limited to 50 mA. Voltage and current can be read from separate displays. A switch selects which output to monitor. The AC output delivers up to 3 A and is provided with a thermo fuse. Note: Not recommended for students due to high output current. Specifications Negative DC voltage: 0 to -50 V Current (max): 50 mA Positive DC voltage: 0 to +500 V Current (max): 50 mA Ripple: less than 0.1% Regulation: Better than 1 % for variations in mains voltage and load up to 10 %. AC Voltage: 2 to 7 V (1 V steps) Current (max): 3 A

This power supply delivers stabilised DC voltage, continuously adjustable between 0 and 6 kV. For safety, the current is limited by a built-in series resistance. The short-circuit current is 2 mA max. Under load, the voltmeter shows the actual supplied voltage. The power supply is also capable of delivering 6.3 V (max. 3 A) AC. This is the standard voltage for many electron tubes etc. On the front, you find a yellow/green ground socket, connected to the metal enclosure and hence (through the mains wire) to earth. The high voltage section floats relative to ground, allowing either the black (negative) socket or the red (positive) socket to be connected to ground, resulting in a voltage range of 0 to +6 kV resp. 0 to -6 kV relative to ground. Specifications •DC Voltage: 0 - 6 kV. Stabilised, continuously adjustable •Short-circuit current (max): 2 mA •Ripple and noise (max): 1% (RMS, 100 V - 6 kV) •Read-out precision: 1% + 1 digit •AC Voltage: 6.3 V •Current (max): 3 A

This power supply delivers stabilised DC, continuously adjustable from 0 to 12 V. It also supplies AC, selectable between 2, 4, 6 and 12 V. The AC voltage is not stabilised. Both outputs have overload protection. The DC channel is electronically protected and automatically reconnects while the AC channel has a circuit breaker which must be manually reconnected if it trips. Specifications •DC Output voltage: 0 - 12 V (stabilised) •Ripple and noise (max.): 100 mV •Output current (max.): 3 A •AC Output voltage: 2, 4, 6, 12 V •Output current (max.): 3 A

A simple, robust and reliable power supply, ideal for basic electricity experiments. It offers stepped adjustment of both AC and DC with 1 V between the steps. The DC voltage is not smoothed or stabilised, meaning there is a fluctuation of approx. 10% of the output voltage at step level. The unit is protected against overload with an automatic circuit breaker (the unit works again after about 10 seconds). DC voltage: 1 to 12 in 1 V steps Current: 6 A max AC voltage: 1 to 12 in 1 V steps Current: 6 A max

Voltages of 0 to 30 V DC and 0 to 300 V DC at up to 60 mA. Outputs are fully floating to provide negative voltages if required and are taken from pairs of colour-coded 4 mm sockets on the front panel. Each output has a continuously variable voltage control, with electronic current limiting circuitry. An indication of the output voltage is given by a graduated scale on each voltage control. A pair of 4 mm sockets on the front panel provide 6.3 V AC at up to 2 A for filament heating. An illuminated on/off switch is mounted on the rear panel adjacent to a fused appliance inlet. Housed in a robust metal case with a durable powder coated finish. •DC Output Voltage Range No1: 0 to 30 V DC •DC Output Voltage Range No2: 0 to 300 V DC •Maximum DC Output Current: 60 mA (both ranges) •AC Output Voltage: 6.3 V AC •Maximum AC Output Current: 2 A

A low-cost alternative to dry cell batteries. Housed in a robust ABS plastic case, this power supply is ideally suited as a replacement in applications where batteries are normally used. Smoothed and regulated DC is available over those ranges selected by rotary switch. Output is via 4 mm red and black sockets. The DC output voltage available are 1.5, 3, 4.5 and 6 V DC at a maximum current of 1 A.

Continuously variable 0 to 20 V AC and full-wave rectified DC at maximum 6 A continuously or 8 A for short periods. Resettable thermal cut-out. Outputs from two pairs of colour-coded 4 mm sockets. Output voltage is indicated by means of a calibrated scale. An illuminated on/off switch is mounted on the rear panel adjacent to a fused IEC mains inlet. Enclosed in a robust metal case with a durable powder coated finish. •AC Output Voltage Range: 0 to 20 V AC •Maximum AC Output Current: 6 A (8 A short period of time) •DC Output Voltage Range: 0 to 20 V DC •Maximum DC Output Current: 6 A (8 A short period of time)

This unit provides voltages of 2, 4, 6, 9, 12 or 14 V AC or full-wave rectified DC at 4 A continuously, or up to 5 A for periods of 1 hour. Voltages are selected by means of a rotating switch on the front panel. In any incidence of overload, including direct short, a current sensing circuit breaker mounted on the front panel will operate and disconnect the output voltage. Outputs are taken from colour coded 4 mm sockets mounted on the front panel. An illuminated on/off switch is mounted on the rear panel adjacent to a fused appliance inlet. Housed in a robust metal case with a durable powder coated finish. Supplied with mains lead and instructions. •AC Output Voltage Range: 2, 4, 6, 9, 12 and 14 V AC •Maximum AC Output Current: 4 A (5 A up to 1 hour) •DC Output Voltage Range: 2, 4, 6, 9, 12 and 14 V DC •Maximum DC Output Current: 4 A (5 A up to 1 hour)

Continuously variable output from 100 V to 5 kV DC. Output voltage is indicated on a 14 mm 2-digit LED display. The EHT circuits are fully floating so that for certain applications the positive or negative terminal may be safely connected to earth. The EHT outputs are taken from 4 mm shrouded sockets and provide 100 V to 5 kV DC at up to a maximum of 3 mA or current limited to 60 µA. A centre tapped socket is provided to give ±2.5 kV DC output. An additional pair of 4mm shrouded sockets at 19mm spacing are provided giving 6.3 V AC at 2 A for filament supplies. There is also a separate earthing terminal. An illuminated on/off switch is mounted on the rear panel adjacent to a fused IEC mains inlet. Enclosed in a robust metal case with a durable powder coated finish. Supplied with instructions and detachable mains lead. •DC Output Voltage Range: 100 V to 5 kV DC •Maximum DC Output Current: 3 mA •Maximum DC Limited Current: 60 µA •AC Output Voltage: 6.3 V AC •Maximum AC Current: 2 A Accessories •5 kV Lead Red: EL91360 •5 kV Lead Black: EL91362

The Powerbase S8 offers 0 to 12 V at 8 A via a safe relay switching system that provides voltages in 1 V steps. AC and DC voltages are available simultaneously in any combination up to a combined output of 8 A. The output is safely protected by a thermal cut out switch on the front panel with an output limiter which allows the user to preset the maximum voltage available. 0 to 12 V AC/DC in 1 V steps 8 A combined simultaneous output lockable via an Allen key mechanism. • Maximum output 0-12 V DC & 0-12 V AC • Current 8 A • Supplied with Allen key to lock minimum or maximum output • Voltage selector type - Relay switched • Output type - Smooth non-regulated • Push button trip reset • Mains input 230/240 V AC, 50 Hz • Supplied with mains plug and lead + Allen key • Manufactured in the UK

The Powerbase V8 comes with a high-power rotary transformer and a high specification toroid transformer. The unit supplies 0-20 V smoothed DC and 0-16 V AC at 8 A. The output is continuously variable and protected by a panel mounted thermal cut out. An output limiter is fitted which allows the user to preset the maximum voltage available. •A heavy-duty power supply for powering laboratory experiments •Heavy duty variable transformer and high-power toroid transformer •Continuously variable output of 0 to 16 V AC and 0 to 20 V DC, capacitor smoothed •Output current 8 A. Output voltages are rated at 8 A load so higher voltages are available at less output current. •Manufactured in the UK with 5 years warranty •AC and DC outputs may be used simultaneously up to rated current. •Colour coded 4 mm sockets. •Maximum voltage limiter operated by Allen key •Push button cut-out to protect against overload and short circuit conditions •Mains Input 230 V, 50 Hz •Fusing: 5 A mains plug fuse

This repair kit for Irwin power supplies allows damaged plastic cases to be replaced quite easily. The kit comprises brand new plastic case in original Irwin blue, gloss black or crystal clear, three ""mushrooms"", which fit on the back of the case and act as cable tidy, new cable clamp and complete fitting instructions. In case of difficulties removing the old cable clamp and cable, specially designed tool to make the job easier is also available.

The Powerbase S5 is a great value power supply that provides a range of AC and DC voltages at 5A. Smoothing is achieved by a 4700uF capacitor. The supply has safe lockable DC and AC outputs ensuring the unit does not exceed the voltage required for experiments carried out by students. • AC & DC Output Voltages DC 3, 7, 10, 13, 17, 20 V - AC 3, 6, 8, 11, 13, 15 V • Current 5A • Supplied with and Allen key to lock minimum or maximum output • Voltage selector type - Stepped • Output type - Smooth non-regulated • Push button trip reset • Mains input 230/240V AC, 50Hz • Supplied with fused mains plug, lead and Allen key • Manufactured in the UK

The Powerbase S10 2-12 V AC/DC switched 5 A power supply unit is ideal for powering electrical experiments using the output voltages ranging from 2, 4, 6, 8, 10, 12 V AC and DC. Safe lockable DC and AC output this ensuring the unit does not exceed the voltage required for experiments carried out by students. • AC & DC Output: 2, 4, 6, 8, 10,12 voltage range in AC and DC • Current 5A • Supplied with Allen key to lock minimum or maximum output • Voltage selector type - Stepped • Output type - Full wave rectified, non-regulated • Push button trip reset • Mains input 230/240 V AC, 50 Hz • Supplied with mains plug and lead + Allen key • Manufactured in the UK

This Power Supply is suitable for wide variety of appliances which are powered by USB. UK mains plug with standard USB-A socket on top. V 2.1 DC output. • 5 V DC 2.1 (10.5 W) • RoHS compliant • CE marked

Spare Black Terminals for Satz School Power Stations.

Spare red terminals for Satz School Power Stations.

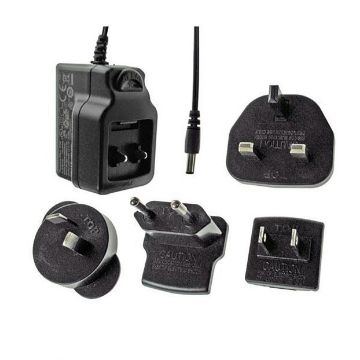

A 6 W DC plug-top power supply. Supplied with interchangeable pins for UK, EU, US and Australian mains sockets, with full compliance with regulations in each of those countries. 9V, 0.67 A, 2.1 mm.
