Ray Boxes

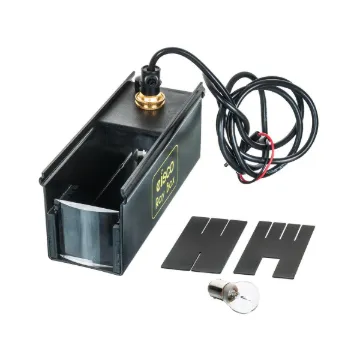

A metal ray box with sliding lamp holder. Supplied with single/double wide/triple slit plates, and 12 V 21 W lamp. Captive flying leads with 4 mm plugs for connection to power supply. Takes 50 mm wide accessories.

Slit plate, 3 & 1 narrow slit for ray Box OP11808 (slit only)

Spare colour filter set for OP94740.

Spare battery box for ray box OP130515.

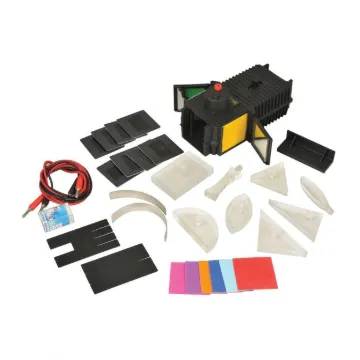

This comprehensive kit with a ray box and 29 optical components is ideal for performing a large variety of reflection, refraction, and colour mixing experiments. The ray box consists of a 12 V, 24 W halogen lamp producing convergent, divergent or parallel beams. One end contains an adjustable cylindrical convex lens (for parallel beam), and on the other end a triple aperture system for colour mixing experiments (lateral aperture is provided with adjustable hinged mirror). All apertures in the box are provided with vertical channels to hold slit plates and colour filters. •Versatile ray box with hinged mirrors & 29 optical components makes it the most comprehensive kit available for demonstrating geometrical optics and the study of light to physics students •Includes a high-quality ray box with a bright halogen lamp providing divergent and parallel beams and hinged mirrors for colour mixing experiments •Includes a comprehensive instruction guide with 18 activities •Components include: 1 x ray box with hinged mirrors, 1 x lamp holder, 2 x 12 V, 20 W bulbs, 2 x 4 mm banana plug leads, 2 x slit plates, 1 x rectangular prism, 1 x 45/45/90 prism, 1 x Equilateral prism, 1 x 30/60/90 triangular prism, 1 x semi-circular prism, 1 x bi-concave lens, 2 x bi-convex lens, 1 x plane mirror on stand, 1 x parabolic mirror, 1 x semi-circular mirror, 1 x semi-circular dish, 8 x colour filters, 8 x colour cards, 1 x manual •A 12 V DC power supply is required for the ray box. Ruler, protractor, and paper are required for the activities.

Spare slit plate, pack of 2, for Premium Ray Box OP94745.

12 V 21 W SBC lamp axial filament 48 mm length. Suitable for Ray Box OP11808.

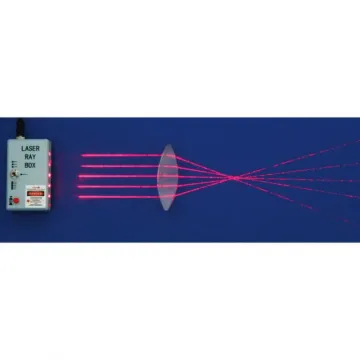

This laser optics kit can be used in bright light conditions thanks to the multi-beam red laser light source. The kit comes complete with Plexiglass (Acrylic) optical accessories and the laser is switchable between 1, or beams, which are all parallel to each other. Comes complete with aluminium storage case. Kit components: Laser class II (1 mW): 1, or laser beams Power supply for laser: 6.3 V mains adaptor mat with disc graduated in degrees and rule graduated in mm, 210 x 380 mm, 150 mm diameter graduated disc Flexible mirror (plane, concave or convex) Optical blocks/prisms: rectangular; parallel faced; semi-circular; biconvex; biconcave lens; semi-circular tank; trapezoid.

Spare triple/wide slit plate for OP94740.

Spare single/double slit plate for OP94740.

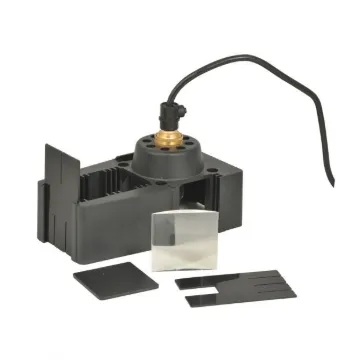

Collimating Lens, Spare 50 x 50 mm f.l. 75 mm for Ray Box Premium, OP94745

A ventilated metal lamp house having an open front with extended finned sides and vertical internal grooves. The light source comprises 12 S.B.C. lamp in holder with m of twin flex. Complete with metal plate having single and triple slits, one side matt black, the other white. Takes 45 mm wide accessories.

Clear Glass with ground ends and optically worked faces. 50 x 50 mm. Power Dioptres +10

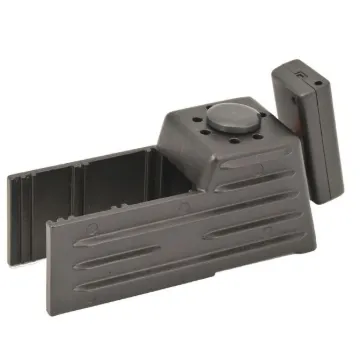

An economical LED Ray Box, housed in traditional die cast enclosure. The unit is supplied with slit plate and battery pack as power source, which requires 2 x AA batteries (not included). The battery pack plugs into 4 mm sockets mounted on the Ray Box.Please note that when using a power supply, it must be DC and the volatge must not exceed 3 V. A higher voltage will blow the LED and invalidate the warranty. However, the LED assembly can be replaced. Takes 45 mm wide accessories.

Students can carry out wide range of optics experiments with this high quality, robust ray box. Designed with two slots to hold blanking plates, seven grooves for lenses. Supplied with 12 V, 24 W, bulb, holder, slit plates blanking plates made from heat resistant plastic. Takes 50 mm wide accessories.

Spare slit plate, single and triple, for Premium Ray Box OP94745.

LED assembly for OP130515.

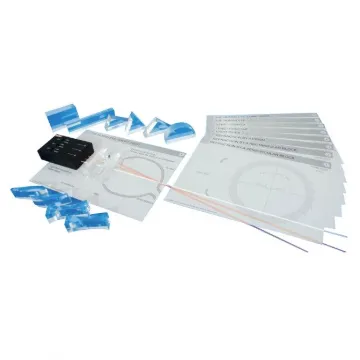

Comprehensive light and optics set which includes a 3 beam ray box (each beam available in dual colours – white or red) and an array of lenses and prisms, teacher’s notes and 9 pupil work cards. The set is an ideal accompaniment to any advanced study of light and optics with experiments to show refraction and reflection through various shaped prisms and lenses, the splitting of light into the rainbow colours, how internal reflection is used in fibre optic cables and the appropriate lenses to use to correct long and short sightedness. Requires 3 x AAA batteries.

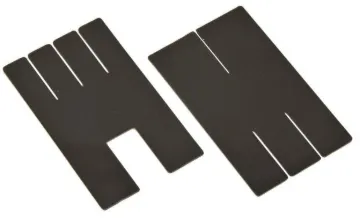

Spare single and double slit for OP180740.
