Kilns

Can be used without the need for either an energy or temperature regulator. If you wish to regulate the kiln temperature, then an optional energy regulator will enable you to do this. This works in the same way as a conventional oven by using the controller to set the kiln to operate at a set/consistent temperature. Please specify when ordering whether you require a regulator or not, as switching to a regulator after purchase without one, requires a two pin plug to be fitted to enable connection to the regulator. The 910-278 Kiln Temperature Programmer & Thermocouple does not require this. Max temp of 1000°C External dimensions HxWxD: 250 x 200 x 210mm. Internal dimensions HxWxD: 130 x 120 x 70mm. 0.9KW Weight: 4.5kg Supplied with a batt (ceramic shelf)

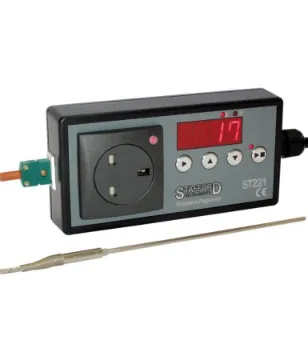

• Easy to retro-fit to kilns without controls • Ideal for enamelling & jewellery • Single program • Heats at full power then soaks • Soak temperature & soak time can be reviewed or altered while firing • Delayed start facility • Power failure recovery • Selectable thermocouple types • Extensive kiln safety monitoring with alarm buzzer

Can be used without the need for either an energy or temperature regulator. If you wish to regulate the kiln temperature, then an optional energy regulator will enable you to do this. This works in the same way as a conventional oven by using the controller to set the kiln to operate at a set/consistent temperature. Please specify when ordering whether you require a regulator or not, as switching to a regulator after purchase without one, requires a two pin plug to be fitted to enable connection to the regulator. The 910-278 Kiln Temperature Programmer & Thermocouple does not require this. Max temp of 1100°C External dimensions HxWxD: 380 x 260 x 300mm Internal dimensions HxWxD: 200 x 160 x 90mm 1.2kW Weight: 8kg Supplied with a batt (ceramic shelf) We strongly recommend the enamelling kilns are used with a controller/programmer to prevent over-firing.

Can be used without the need for either an energy or temperature regulator. If you wish to regulate the kiln temperature, then an optional energy regulator will enable you to do this. This works in the same way as a conventional oven by using the controller to set the kiln to operate at a set/consistent temperature. Please specify when ordering whether you require a regulator or not, as switching to a regulator after purchase without one, requires a two pin plug to be fitted to enable connection to the regulator. The 910-278 Kiln Temperature Programmer & Thermocouple does not require this. Max temp of 1100°C External dimensions HxWxD: 410 x 300 x 320mm Internal dimensions HxWxD: 230 x 190 x 120mm 2KW Weight: 14.5kg Supplied with a batt (ceramic shelf)

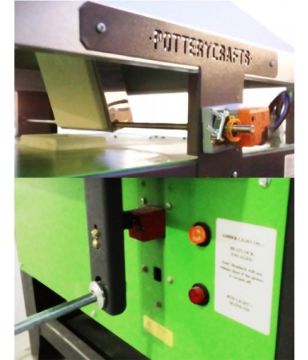

Front Loader Auto Damper & Heat Lock

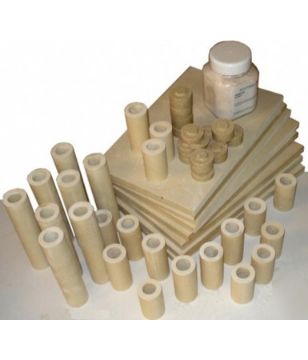

Kiln furniture set (P5841)

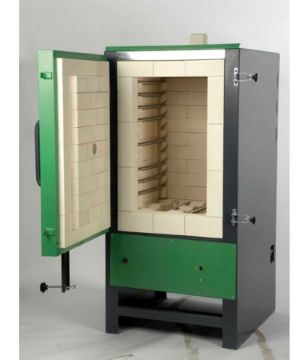

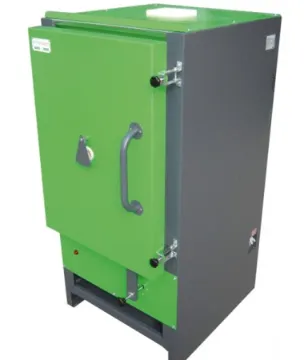

• Type R thermocouples fitted as standard on UK kilns • Adjustable clasp door locks fitted • Stainlesssteel surround • Brick to brick door seal • All kilns are fitted with a Harting socket for easy controller connection • Mains power indicator • Wired for singleor three phase connection • Roof and door vent asstandard for ventingof the kiln during firing and to aid cooling • Energy efficient • Furniture set available

Firing capacity: 135 litres (4.77 cu ft). Maximum Temperature: 1320°C Chamber dimensions mm: 420 wide x 480 deep x 680 high External dimensions mm:;730 wide x 940 deep x 1560 high Weight: 270kg Power: 7.5 kW Supply required: Single Phase-40 amps or 3 phase-15amps per phase Installation Note: Please be aware that although we need to specify a 16 Amp three phase supply, the commando socket needs to be a 32amp socket as it is dimensionally bigger. The 910-007 plug is five pin (ThreePhaseNeutral+Earth).
