Multimeters

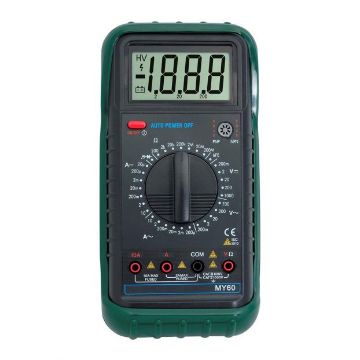

The MY60 is high quality, high-accuracy 3.5 digit multimeter offering excellent value for money. This meter has thirty two ranges, which cover measurement of AC and DC voltage, AC and DC current and resistance plus test positions for diodes and transistors. It also incorporates an audible continuity tester, large, clear LCD display and 'low battery' indicator which shows when the battery is exhausted. The meter is supplied with rubberised holster for protection, which has 2-height stand built in along with clips to hold the test probes. Designed in accordance with IEC-1010. Supplied complete with holster, test probes, PP3 battery and instruction manual. Weight: 310 g (including battery). Dimensions (D x W x H): 31.5 x 91 x 189 mm. Features: • 32 Ranges • Large LCD 3.5 digits • Auto power off • DC voltage: 200m/2/20/200V ±0.5%, 1000V ±0.8% • AC voltage: 200mV ±1.2%, 2/20/200V ±0.8%, 700V ±1.2% • DC current: 20µA ±2.0%, 200µA/2m/20mA ±0.8%, 200m/2A ±1.5%, 10A ±2.0% • AC current: 20µ/200m/2A ±1.8%, 2m/20mA ±1.0%, 10A ±3.0% • Resistance: 200/2k/20k/200k/2MΩ ±0.8%, 20MΩ ±1.0%, 200MΩ ±5.0% • Continuity checking with buzzer • Diode check: Test current 1.0mA, test voltage 2.8 • Power: PP3 (9V) 1 • hFE: ~ 1000 • Display: 30mm x 60mm LCD

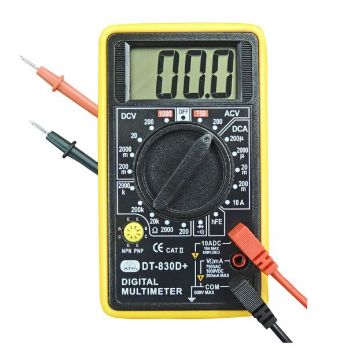

An easy to use compact 3.5 digit LCD multimeter. Supplied with test leads, battery and boot. Dimensions (L x W x D): 162 x 86 x 33 mm. Features: • DC volts 200mV to 1kV • AC volts 200mV to 750V, • DC amps 20mA to 10A • Resistance 200Ω to 2MΩ • Diode Test • Continuity

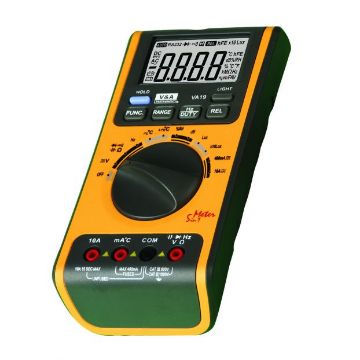

This multifunction meter measures number of environmental conditions, as well as wide range of electronics measurement, making it an excellent general purpose meter for school science departments. Featuring auto-range, data hold, relative measurement, backlight, auto power-off, and IEC1010 CatII 1000 V Conformity. • DC voltage: 0.4 V/4 V/40 V/400 V/600 ±0.7 % • AC voltage: 4 V/40 V/400 V/600 ±0.8 % • DC current: 40 mA/400 mA ±1.2 %, 10 A ±2.0 % • AC current: 40 mA/400 mA ±1.5 %, 10 A ±3.0 % • Resistance: 400 R/4 k/40 k/400 k/4 M ±1.2 %, 40 ±2.0 % • Capacitance: 4 nF/40 nF/400 nF/4 μF/40 μF/200 μF ±3.0 % • Frequency: 10 R/100 R/1 k/10 k/100 kHz ±2.0 % • Duty cycle: 0.1 ~ 99.9 ±3.0 % • Temperature: -20 °C 400 °C ±3.0 (0.1 °C), 400 °C 1000 °C ±3.0 (1 °C) • Humidity: 30 % ~ 95 % RH ±5.0 %RH • Light: 4000 lux/40000 lux ±5.0 % • Sound level: 35 - 100 dB ±4 dB • Continuity test • Power: 9 V (6F22) x1 • Size: 185 x 85 x 44 mm
