Metalworking Machinery

For spindle polishing machines. Made from white cotton with 60 folds giving a mop approximately 1inch wide. Available either stitched for hard use or unstitched for finishing.

The bench mounted machines incorporate adjustable dust collection hoppers for use with a centralised dust extraction system. Set of polishing mops included.

The integral dust extraction model features a Terylene-needlefelt dustbag, filter indicator light, tray collector and comes with an emergency stop bar and fully complies with UK COSHH Regulations, the European Machinery Directive and also with the BS4163 “Health & Safety in Workshop of Schools and Similar Establishments” Regulations. KEY FEATURES • Mounted double end polishers and dust extraction • Supplied with heavy duty adjustable polycarbonate eyeshields • No-volt overload pushbutton controls • Large adjustable mop guards with safe edging • Supplied with one loose leaf and one stitched calico mop • UK manufactured

The bench mounted machines incorporate adjustable dust collection hoppers for use with a centralised dust extraction system. Set of polishing mops included.

Features: • Movable Head 45° right & left • Reduction unit in oil bath • Membrane pump for coolant • Coolant filter • Vice complete with anti-burr device • Bar stop • 24 Volts low voltage installation with hold-to-run head control knob • Service tools • Instruction manual & spare parts

Pedestal for MACC-TE250

Polish for non-grained hard plastics, plexiglass or macrolon, polyester and acryl. 1 litre.

Bars are approximately 0.9kg unless otherwise stated. Specifically for plastic such as acrylic. 0.8kg bar.

For spindle polishing machines. Made from white cotton with 60 folds giving a mop approximately 1inch wide. Available either stitched for hard use or unstitched for finishing.

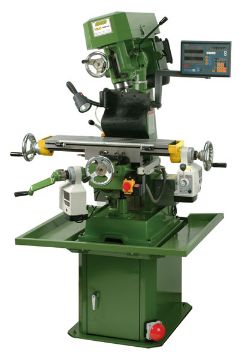

Nine speeds Vee belt drive Head tilts left to right, calibrated to 45° 360° rotation on horizontal axis One shot lubrication system to slideways and leadscrews to ensure prolonged machine life Choice of spindles - R8 or 3MT • Choice of either metric or imperial leadscrews • Traditional design with elevating knee, supported on double dovetail vee ways to ensure positive alignment • Tapered gibs to X, Y and Z axes • Rack and pinion feed and calibrated fine feed to quill • Locks to X, Y and Z axes • Interlock belt guard • Cabinet stand included. •New! LED lighting

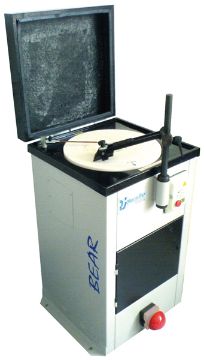

It features 140rpm wheel speed, force-fed recirculatory coolant systems and a tool holder that accepts up to 60mm wide blades. The centre swivel arm has fine adjustment control to ensure that the tool edge and grinding wheel remain in perfectly flat contact. Safety features include a no-volt overload pushbutton starter, large foot stop switch and an automatic safety cut-out if the front door is opened whilst the machine is switched on. KEY FEATURES • Controlled 140rpm wheel speed • Force-fed recirculatory coolant system and anti-spill tray • Integral oil reservoir with filter • Tool holder for blades up to 60mm wide • Radius gouge attachment • Centre swivel arm with vernier adjustment

The M300 Centre lathe is a full-function lathe capable of the entire range of turning operations it is equally at home in industry, vocational training or educational establishments. Compact and sturdy, the M300 centre lathe is easy to use and has the power to deal with heavy metal removal, at the same time offering precision for fine tolerance turning. Key Features • Easy selection of spindle speeds • Smooth power transmission and quiet running • Fast and simple changeover of spindle work holding equipment • Rapid action foot controlled brake with electrical disengagement. • Universal gearbox enables quick and easy selection of metric or imperial feed rates Specification M300 Lathe Distance Between Centres*635/1000mm Swing Over Bed330mm Spindle Speeds12 speeds (40 - 2500rpm) Spindle Bore40mm Spindle NoseD1-4 Camlock Centre Height167mm Cross Slide Travel210mm Height1.40m/1.45m Width1.68m/2.13 Depth97cm/1.02m Weight710kg/790kg Motor/Power2.2kw *Dependant on tailstock, centres and tooling specified

The PL-1340 is a gear head metal lathe that offers eight speeds that vary from 70 to 2000 rpm. The PL-1340 is powered by 220 volt single phase power which makes it available for those areas where power selection is limited. Key Features • Easy selection of spindle speeds • DRO as standard • 4-way quick change tool post with guard • 150mm 3 jaw chuck • Integrated coolant system Specification PL-1340 Lathe Distance Between Centres990mm Swing Over Bed330mm Spindle Speeds8 speeds (70 - 2000rpm) Spindle Bore38mm Spindle NoseD1-4 Centre Height165mm Cross Slide Travel160mm Height1500mm Width2006mm Depth838mm Weight740kg Motor/Power220V, 1 Phase 50Hz (1.5kw 2hp)

Powered by 220v single phase the Baileigh Industrial PL-1236E allows the operator to choose what voltage will suit their needs the best. Because of its versatile voltage options as well as the integrated digital readout, the PL-1236E is the perfect choice for education. The PL-1236E has an easy to use gear system that allows for taping, turning, and polishing with a range of 9 speeds from 70 to 1400 RPM. To ensure that all cuts are precise, all ways are ground and hardened to ensure long life. They also have adjustable gibs to make sure they slide as free as possible with no binding. • Distance between centres 914mm • 12inch (305mm) swing over bed • Digital read-out • 6inch three and 8inch four jaw chucks
