Microscope Cameras

This easy to use 'plug and play' microscope camera offers excellent value for money. It can be easily controlled from anywhere in the classroom using the IR remote and has a large and clear control panel on the base. Simple connection to a microscope using the adapter on the head makes this a practical and versatile piece of equipment. • 8-megapixel camera resolution • Image capture and processing • Audio and video recording • Autofocus and 100x digital zoom • Flexible camera head with 180° rotation • Picture-in picture mode • Connects directly to projector/monitor • 5 Level dimmable LED brightness control • Built-in microphone • IR remote control included • Annotate directly without PC and save to SD card (not included) • Eyepiece diameter: 23.8 - 28.2 mm • Product Size: 185 x 115 x 320 mm (WxDxH) • Weight: 1045g

A C-mount camera adapter with 0.5X magnification and a sensor size of 1/3"". Suitable for use with MI220000 B1-223E-SP trinocular microscope.

The Moticam X5 Plus transfers live images up to 30 fps and captures images at 4.0 MP: a compact Wi-Fi camera to share live images with up to 6 devices at the same time. Simply logon with your tablet or smartphone and get ready to capture, edit and save your images with free MotiConnect App. Use your computer with Motic images Plus 3.1 software for further image processing. •Sensor type: CMOS •Resolution: 4.0 MP •Lens mount: C-Mount (MI220020) •Focusable lens: 12 mm •Functions: Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system •Power supply: 12 V (External power supply) •Package includes: CS ring adapter, USB cable, focusable lens, 30 mm and 38 mm eyepiece adapters, Motic 4-dot calibration slide, macro-tube, Motic Images Plus 3.1 for PC/OSX/Linux, universal power supply.

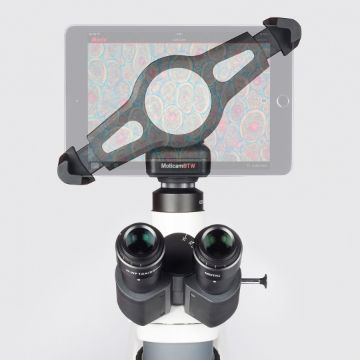

The Moticam BTW consists of a 5 MP camera with a built-in adjustable bracket, which allows you to mount your own tablet (up to 10”). The camera can be connected via Wi-Fi to an IOS or Android tablet, or through USB to a Windows based tablet. •Sensor type: CMOS •Resolution: Wi-Fi 1.3 MP, USB 5.0 MP •Supported OS: Windows XP/Vista/7/8/10, Mac OSX, Android 4.0 or higher, iOS7 or higher •Lens mount: C-Mount (MI220020) •Functions: Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system •Power supply: 5 V (External power supply) •Tablet bracket holder: For tablets from 7” to 10” •Package includes: USB 2.0 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for PC/OSX/Linux, universal power supply. ** Please note a C-Mount camera adapter (MI220020) is required to connect this camera to a trinocular microscope.
