Cnc Machines

Image shows dust extraction unit incorporated into machine bench.

Programmable spindle speeds and feedrates make the VMC 1300 ideal for cutting a range of resistant materials such as wax, plastic, acrylic, free cutting alloys, aluminium and steel. Also available for integration into FMS/CIM systems (additional equipment must be fitted at the time of manufacture. The VMC 1300 comes as standard with: • VR CNC Milling Operating Software (PC not included) • Installation and instruction manuals • Power Drawbar with manual actuation • Workholding clamps • USB connection

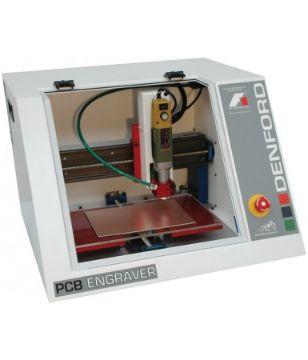

The PCB Engraver is supplied with operating software incorporating Gerber and DXF import facilities. The PCB engraver is ideal for cutting and engraving a range of resistant materials, including copper board, plastic and acrylic. • Powerful operating software that is simple to use and allows multiple design to be made at once • High speed spindle motor and floating head • Basic tools and depth-setting device • Installation and Instruction guides • Outlet for dust extraction • Sacrificial Table • USB Connection Optional Equipment: CAD, CAM and/or PCB design software, such as Denford’s QuickCAM 2D Design, will be required in order to make the files required for machining (CNC G-Code or Gerber).

THE ROUTER 2600 PRO COMES AS STANDARD WITH: • VR CNC Milling Operating Software (PC not included). • Aluminium T Slot Table. • Installation and Instruction Manuals. • Outlet for Dust Extraction System. • Workholding Clamps. • USB Connection. OPTIONAL EQUIPMENT INCLUDES: 5 Station Automatic Tool Changer, Vacuum Bed, F1 in Schools Car Manufacturing Fixture, 4th Axis Programmable Rotary Fixture, 3D Scanning Attachment, Dust Extraction Unit and Universal Machine Bench. RECOMMENDED SOFTWARE PROGRAMS All software necessary to control the Router 2600/Router 2600 Pro is included. Also included is a seat of QuickCAM 2D Design - an easy to use 2D CAD package. • For 2D Designs - will link to packages able to export 2D dxf files such as QuickCAM 2D Design, TechSoft Design Tools - 2D Design, CorelDraw etc. • For 3D Designs - will link to packages able to export STL files such as Pro/DESKTOP, ArtCAM and Autodesk Inventor, SolidWorks etc. when used in conjunction with QuickCAM Pro. Available with 5 Station Automatic Tool Changer. The F1 in schools package: DESIGN: SolidWorks Education Edition - 3D Design, Drafting & Simulation Software. QuickCAM Pro Advanced Milling/Routing CAM software (site licence). ANALYSE: Virtual Reality Wind Tunnel (VRWT) Software (single licence). MAKE: CNC Machine Options • Router 2600/Router 2600 Pro (Metal Cutting) • Compact 1000 Pro (Metal Cutting) • MRC 40 Car Manufacture Fixture F1 in Schools Car Manufacturing Fixture for both Bloodhound SSC & Formula One Class cars. Consumables - Bloodhound SSC & Formula One Class Cars Formula One Class Balsa Wood Blanks - Pack of 20. Fusion Wheels - Black - Pack of 100. Screw Eyes 1” - Pack of 100. Long Axles - 65mm - Pack of 100. Straw Wheel Spacers - Pack of 500. Washers - 4mm - Pack of 100. Decal Stickers - Pack of 25 sheets. Paint Stand. Bloodhound SSC Class Balsa Wood Blanks - Pack of 20. PX Wheels - Rear - Black - Pack of 100. LX Wheels - Front - Black - Pack of 100. Screw Eyes 1/4” - Pack of 100. Short Axles - 43mm - Pack of 100. TEST: Scout Wind Tunnel. Fog Maestro Smoke Generator including 1Ltr. Fog Fluid. RACE: Elevated Race Track - 25m track. F1 Race System - x1 Start & Finish Gate, x2 Launch Triggers, x2 Launchers, x1 Power Supply, x1 Control Box, Race Time Management System. 8 Gram Competition Cartridges (pack of 120).

This official F1 Model Block measures 223mm x 65mm x 50mm with a consistent weight of 112grams and contains a pre-drilled hole for the CO2 cartridge. This pack contains 10 model blocks. This will be the only material accepted at the F1 in Schools World Finals commencing in 2015. This new block is grain free, has a consistent weight and density, machines very well and is easy to paint.

The universal bench comes with wheels, anti-vibration pads, storage cupboard, tooling drawer and is suitable for both machines. Size: (HxWxD) 780 x 1270 x 750mm. Colour: Grey. The integrated dust extraction unit is an optional extra, please see below for details. With recessed top

Computer Support Extension - Optional Extras for 540-172/1721

Both STL files and image files can be imported into QuickCAM Pro, and a comprehensive set of machining plans can be used individually or in combination to produce complex 3D surfaces and lithophanes. 12 machining plans use individually or in combinations: • 3 Roughing Plans. • 6 Finishing Plans. • 3 Fine Finishing Plans Each plan can be customised or used with default values. Any number of plans can be used to produce the final part. Different cutters can be used with each plan. Simulation mode can be toggled on or off for easy viewing. Custom boundary feature allows selected area to be machined. Viewer and simulation colours can be selected and changed. Finished models can be rendered in custom materials. Intelligent scaling fits model into billet or billet around model. Comprehensive “show me” files to provide Help options SUPPORTED INPUT FORMATS 3D Stereo Lithography*(STL) files. *Used by Pro/DESKTOP, ArtCAM, Autodesk Inventor and Solid Edge. AutoDesk 3D Studio Files (3DS). SYSTEM REQUIREMENTS IBM or 100% Compatible PC, Pentium III, 1Ghz, 512MB RAM, 200MB Free Hard Disk Space, Microsoft Windows XP; NT; 2000; Vista; Windows 7, CD-ROM Drive, OpenGL 3D Accelerator Graphics Card with 128MB RAM supporting at least 1024 x 768 screen resolution. CNC Machines require USB Connection

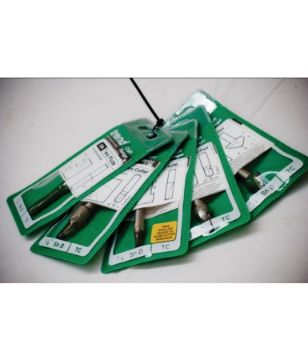

Tooling package contains: 60 Deg V Cutter; 1/8"" 2 Flute cutter 1/4"" 2 Flute cutter 1/8"" Ball Nose cutter 1/4"" Ball Nose cutter

THE ROUTER 2600 PRO COMES AS STANDARD WITH: • VR CNC Milling Operating Software (PC not included). • Aluminium T Slot Table. • Installation and Instruction Manuals. • Outlet for Dust Extraction System. • Workholding Clamps. • USB Connection. OPTIONAL EQUIPMENT INCLUDES: 5 Station Automatic Tool Changer, Vacuum Bed, F1 in Schools Car Manufacturing Fixture, 4th Axis Programmable Rotary Fixture, 3D Scanning Attachment, Dust Extraction Unit and Universal Machine Bench. RECOMMENDED SOFTWARE PROGRAMS All software necessary to control the Router 2600/Router 2600 Pro is included. Also included is a seat of QuickCAM 2D Design - an easy to use 2D CAD package. • For 2D Designs - will link to packages able to export 2D dxf files such as QuickCAM 2D Design, TechSoft Design Tools - 2D Design, CorelDraw etc. • For 3D Designs - will link to packages able to export STL files such as Pro/DESKTOP, ArtCAM and Autodesk Inventor, SolidWorks etc. when used in conjunction with QuickCAM Pro.

Universal machine bench for Denford Turn 270, includes computer extension.

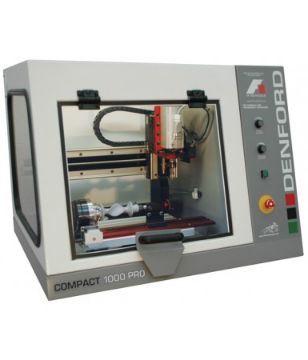

A compact 3 axis CNC Router with totally enclosed interlocking guard, suitable for all levels of education and training. The Compact 1000 Pro is ideal for cutting a range of resistant materials such as hard and soft wood, plastic, modelling foam, acrylic and prototyping materials, as well as non-ferrous metals. THE COMPACT 1000 PRO COMES AS STANDARD WITH: • VR CNC Milling Operating Software (PC not included). • Aluminium T Slot Table. • Outlet for Dust Extraction System. • Workholding Clamps. • I nstallation and Instruction Manuals. • USB Connection. OPTIONAL EQUIPMENT INCLUDES: Vacuum Pads, F1 in Schools Car Manufacturing Fixture, 4th Axis Programmable Rotary Fixture, 3D Scanning Attachment, Universal Machine Bench and Dust Extraction Unit. RECOMMENDED SOFTWARE PROGRAMS All software necessary to control the Compact 1000 Pro is included. Also included is a seat of QuickCAM 2D Design - an easy to use 2D CAD package. • For 2D Designs - will link to packages able to export 2D dxf files such as QuickCAM 2D Design, TechSoft Design Tools - 2D Design, CorelDraw etc. • For 3D Designs - will link to packages able to export STL files such as Pro/DESKTOP, ArtCAM and Autodesk Inventor, SolidWorks etc. when used in conjunction with QuickCAM Pro.

Contents: LH Turning Tool 12mm Shank RH Turning Tool 12mm Shank Pack of 10 Inserts for LH/RH Turning Tools Parting Off Tool 12mm Shank with 10 Inserts External Threading Tool 12mm Shank with 10 Inserts Boring Bar 8mm Shank with 10 Inserts 5mm Centre Drill 2 Stub Drills (5mm & 10mm) 4 Turret Bushes (2 x 5mm, 8mm & 10mm)

Programmable spindle speeds and feedrates make the Turn 270 Pro ideal for cutting a range of resistant materials such as wax, plastic, acrylic, free cutting alloys, aluminum and steel. THE TURN 270 PRO COMES AS STANDARD WITH: • VR CNC Turning Operating Software (PC not included) • QuickTURN 2D Design Software (1 seat) • Quick Change Toolpost and Holder • Manual Self Centring 100mm 3 Jaw Chuck • Installation and Instruction Manuals • USB Connection
