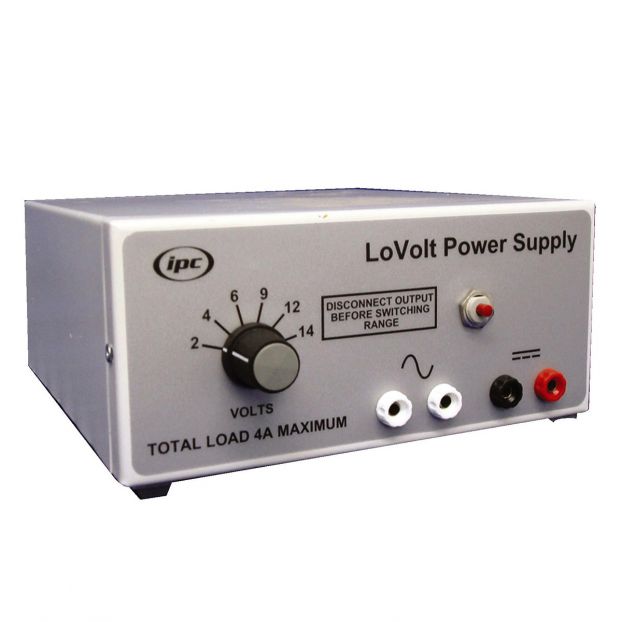

Lo-Volt Power Supply

This unit provides voltages of 2, 4, 6, 9, 12 or 14 V AC or full-wave rectified DC at 4 A continuously, or up to 5 A for periods of 1 hour. Voltages are selected by means of a rotating switch on the front panel. In any incidence of overload, including direct short, a current sensing circuit breaker mounted on the front panel will operate and disconnect the output voltage. Outputs are taken from colour coded 4 mm sockets mounted on the front panel. An illuminated on/off switch is mounted on the rear panel adjacent to a fused appliance inlet. Housed in a robust metal case with a durable powder coated finish. Supplied with mains lead and instructions. •AC Output Voltage Range: 2, 4, 6, 9, 12 and 14 V AC •Maximum AC Output Current: 4 A (5 A up to 1 hour) •DC Output Voltage Range: 2, 4, 6, 9, 12 and 14 V DC •Maximum DC Output Current: 4 A (5 A up to 1 hour)
