Switches

Miniature low-cost toggle switches.

This sewable slide switch allows LEDs to be turned on or off in your E-Textiles project. It has 2 connection points to which the conductive thread is connected.

Dimensions (HxWxD): 10.2 x 19.8 x 6.4mm. These include switch body and contacts but not roller and long lever.

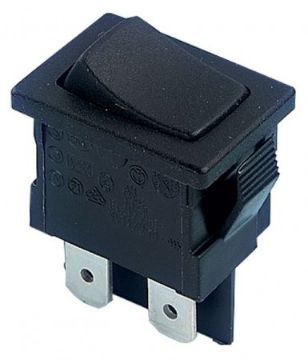

Panel mounting SPST 10 amp 250V AC. panel cutout 19.3 x 13mm Terminals 4.8 x 0.8 crimp (D250-694)

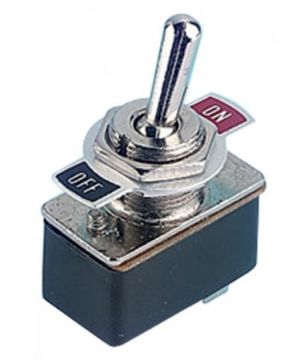

Panel mounting with solder tag terminals. Supplied with On-Off indicator plate.

DPDT slide switch 22 x 13 x 12mm.

Single pole push-on/off press switch with screw terminal connections. Specifications: Rating: 2A @ 250VAC Panel cutout: 10mm. Max panel thickness: 3mm

DPDT 15 x 8 x 7mm.

DPCO has a centre off position.

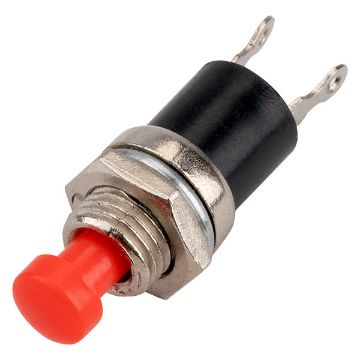

Simple push to make switch - pack of 10

Lever toggle switch SPST, pack of 10

Low cost momentary (non-locking) action panel mounting push to make switches. Supplied with fixing nut & washer 7mm cut out. External Diameter:10mm External Length / Height:28mm
