Motors & Mounts

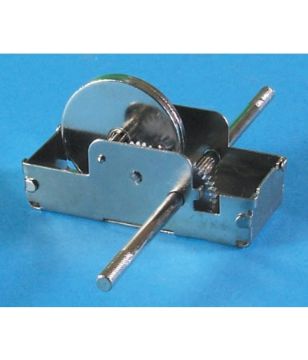

Made from metal with 2 flywheels and 2 gears. With 3 fixing holes. Drive axle 105mm x 4mm.

Miniature circular DC motor, ideal for models and educational applications.Nominal voltage 3.0V with operating range 1.5 to 4.5V. The two flat sides enable easy mounting onto a panel or PCB. Rotation is counter-clockwise (as viewed from shaft end). Nominal voltage: 3.0V Operating range: 1.5-4.5V No load speed: 16000 RPM No load current: 0.4A Speed at max. efficiency: 12400 RPM Current at max. efficiency:1.5A Torque: 11.9g-cm Dimensions: L: 25 (exc. shaft) W:20.1 H:15.1mm. Shaft length 8.1x 2.0 dia. Weight 19g approx.

Medium torque DC motor with operating range 1.5 to 4.5V, ideal for educational and modelling applications. Rotation is clockwise as viewed from shaft end. Dimensions: L: 27 (exc. shaft) x 24mm dia. Shaft length 8.6x 2.0 dia. Weight 28g approx. Nominal voltage: 3.0V Operating range: 1.5-4.5V No load speed: 6600 RPM ±10% No load current: 0.13A Speed at max. efficiency: 5100 RPM Current at max. efficiency: 0.4A Output: 0.42W Torque: 11.6g-cm Stall torque: 55g-cm min. Stall current: 1.4A max.

25mm O.D. Self adhesive pad on base.

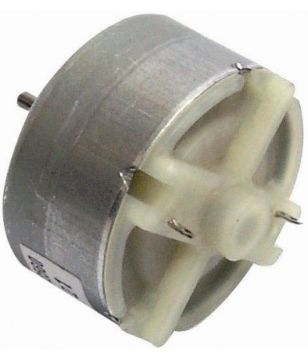

These solar motors are low inertia types with low current drain suitable for use with solar modules & cells shown above. They can also be used instead of standard motors to reduce battery current drain.

A high torque miniature DC motor with an operating range of 1.5V to 6.0V, suitable for educational and modelling applications. Rotation is clockwise as viewed from shaft end. Dimensions: L: 30.5 (exc. shaft) x 24mm dia. Shaft length 10mm x 2.0mm dia. Weight 42g approx. RoHS compliant Nominal voltage: 3.0V Operating range: 1.5-6.0V No load speed: 9600 RPM ±10% No load current: 0.25A Speed at max. efficiency: 7790 RPM Current at max. efficiency: 1.14A Output: 1.58W Torque: 19.9g-cm Stall torque: 110g-cm min. Stall current: 5.2A max.

Miniature circular DC motor. Rotation is clockwise (as viewed from shaft end). Dimensions: L: 25 (exc. shaft) x 21mm dia. Shaft length 8.1x 2.0 dia. Weight 19g approx. RoHS compliant Nominal voltage: 3.0V Operating range: 1.5-3.0V No load speed: 14700 RPM No load current: 0.3A Speed at max. efficiency: 11524 RPM Current at max. efficiency:1.05A Torque: 14.1g-cm Stall torque: 65g-cm Output: 1.65W
