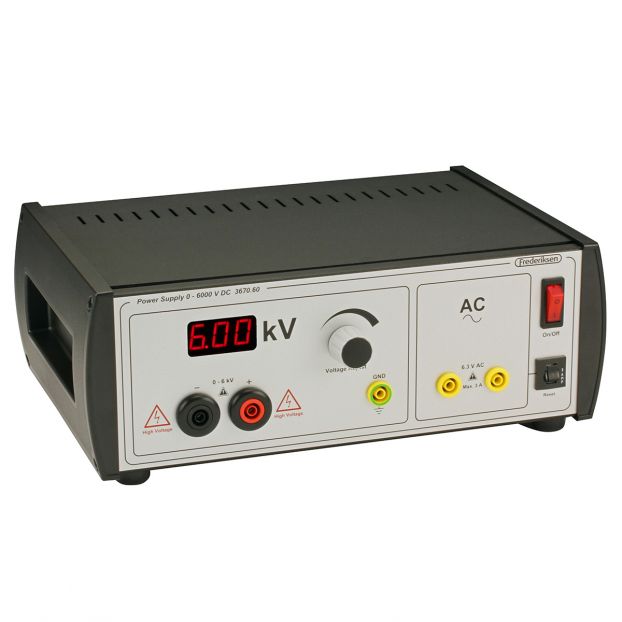

    Frederiksen Power supply 0 - 6000 V DC

    Manufacturer: Timstar
    This power supply delivers stabilised DC voltage, continuously adjustable between 0 and 6 kV. For safety, the current is limited by a built-in series resistance. The short-circuit current is 2 mA max. Under load, the voltmeter shows the actual supplied voltage. The power supply is also capable of delivering 6.3 V (max. 3 A) AC. This is the standard voltage for many electron tubes etc. On the front, you find a yellow/green ground socket, connected to the metal enclosure and hence (through the mains wire) to earth. The high voltage section floats relative to ground, allowing either the black (negative) socket or the red (positive) socket to be connected to ground, resulting in a voltage range of 0 to +6 kV resp. 0 to -6 kV relative to ground. Specifications •DC Voltage: 0 - 6 kV. Stabilised, continuously adjustable •Short-circuit current (max): 2 mA •Ripple and noise (max): 1% (RMS, 100 V - 6 kV) •Read-out precision: 1% + 1 digit •AC Voltage: 6.3 V •Current (max): 3 A
    SKU: SS013162
    Manufacturer part number: EL150304
    Availability:
    Price: 3912.98 AED
    i h h
    0 - 6000 V Dc Power Supply. This kV power supply provides stable DC voltage for wide range of experiments with electron tubes, electrostatics etc.The EHT supply is short circuit proof and the current limiting series resistor provides reliable protection.The accurate built-in voltmeter eliminates the need for an expensive external voltmeter making experiments simpler.DC Output:• 0-6 kV stabilised, continuously adjustable• mA max.• Ripple and noise <1 %• Display better than 1% 1 digit• Fully floating outputAC Output:• 6.3 fixed, A max.
