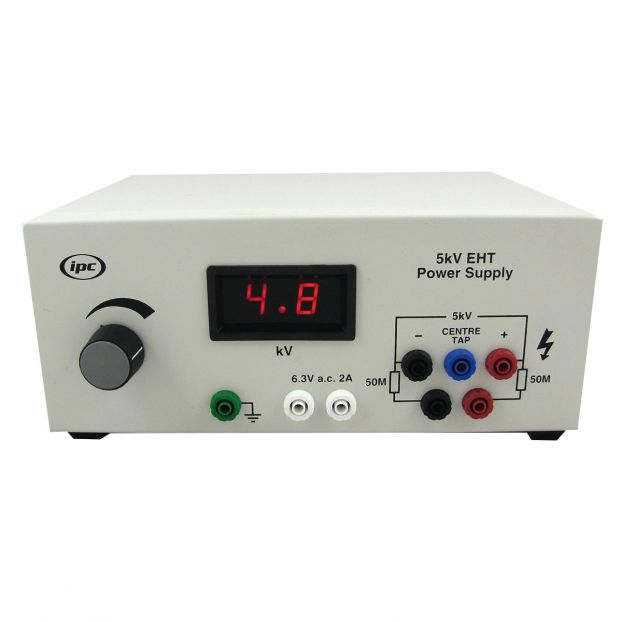

    5 kV EHT Power Supply

    Manufacturer: Timstar
    Continuously variable output from 100 V to 5 kV DC. Output voltage is indicated on a 14 mm 2-digit LED display. The EHT circuits are fully floating so that for certain applications the positive or negative terminal may be safely connected to earth. The EHT outputs are taken from 4 mm shrouded sockets and provide 100 V to 5 kV DC at up to a maximum of 3 mA or current limited to 60 µA. A centre tapped socket is provided to give ±2.5 kV DC output. An additional pair of 4mm shrouded sockets at 19mm spacing are provided giving 6.3 V AC at 2 A for filament supplies. There is also a separate earthing terminal. An illuminated on/off switch is mounted on the rear panel adjacent to a fused IEC mains inlet. Enclosed in a robust metal case with a durable powder coated finish. Supplied with instructions and detachable mains lead. •DC Output Voltage Range: 100 V to 5 kV DC •Maximum DC Output Current: 3 mA •Maximum DC Limited Current: 60 µA •AC Output Voltage: 6.3 V AC •Maximum AC Current: 2 A Accessories •5 kV Lead Red: EL91360 •5 kV Lead Black: EL91362
    SKU: SS013171
    Manufacturer part number: EL81475
    Availability:
    Price: 2628.41 AED
    i h h
    Eht Power Supply Ipc. Continuously variable output from 100V to 5kV. Output voltage is indicated on 14mm digit LED display. The EHT circuits are fully floating so that for certain applications the positive or negative terminal may be safely connected to earth. The EHT outputs are taken from 4mm shrouded sockets and provide 100V to 5kV DC up to maximum of 3mA or current limited to 60µA. centre tapped socket is provided to give ±2.5kV output. An additional pair of 4mm shrouded sockets at 19mm spacing are provided giving 6.3V AC at 2A for filament supplies. There is also separate earthing terminal. An illuminated on/off switch is mounted on the rear panel adjacent to fused IEC mains inlet. Enclosed in robust metal case with durable powder coated finish. Supplied with instructions and detachable mains lead.Weight: 3.6kg. Dimensions (L W H): 255 220 110mm.
