    Vernier Microscopes

    View as Grid List
    Sort by
    Display per page

    Intermediate Vernier Microscope

    The unit is built on heavy cast-iron base. The movement is controlled by knob at the side of the base, and can be fixed in any position with clamping screw, and Vernier scale allows precise measurement to 0.01 mm. The carriage has two locations for the microscope, which allows it to be mounted with its axis in any position relative to travel. The microscope itself features 7x magnification Ramsden objective, 3x magnification 50 mm FL eyepiece, and cross-piece graticule, with rack-and-pinion focusing. Supplied in polished wooden case.
    2371.10 AED

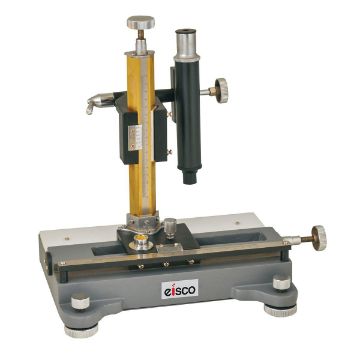

    Advanced Vernier Microscope

    The unit is built on heavy cast-iron base with three levelling screws, with bubble level meter. The horizontal movement is controlled by knob at the left hand side of the base, and can be fixed in any position with clamping screw, and Vernier scale allows precise measurement to 0.02 mm. The total horizontal movement is 210 mm. Vertical movement is by rack-and-pinion, and has its own Vernier scale to 0.02 mm. The total vertical movement is 160 mm. The stage for placing objects for measurement is fitted with Perspex plate. The microscope can be clamped in either vertical or horizontal position, and features 10x magnification 50 mm F.L. achromatic eyepiece. Supplied in polished wooden case.
    3161.60 AED
