Machine Safety

Screw set for BT Guard

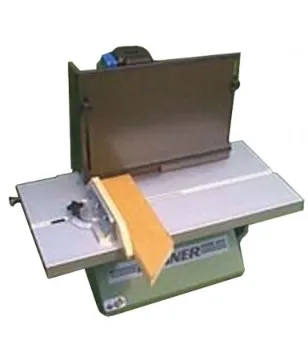

Guard for HSM300 Disc Sander

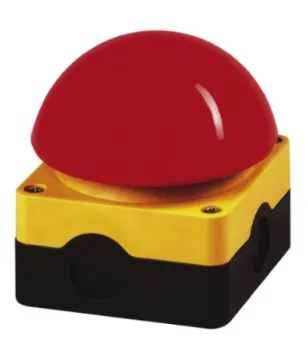

Latching emergency stop switch, red with yellow body, for foot/knee/palm.

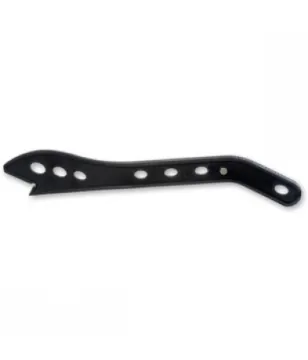

A strong rigid plastic push stick suitable for use with many machines. An essential safety aid for use on any machine with an exposed cutting blade. Length 420mm Height 70mm (At highest point) Width (At widest point) 10mm Weight 150g

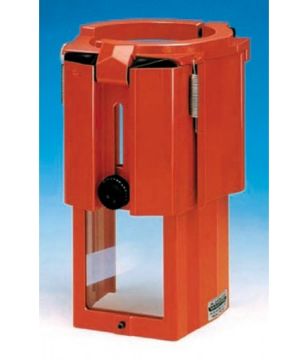

• Machine Type - Medium /Bench or Pedestal • Method of attachment - Secures around depth stop collar using fixing top to suit configuration • Positive Manual latch • Flip up with spring retention • Construction - Aluminium/Nylon with Polycarbonate Vizor which encloses the work area • Operation - Telescopes on contact with work piece, length adjustable vizor Please state collar size when ordering. Maximum chuck dia. for the MT is 63mm / MTS is 70mm.

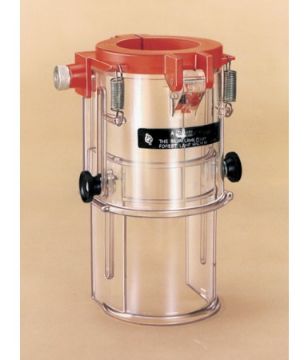

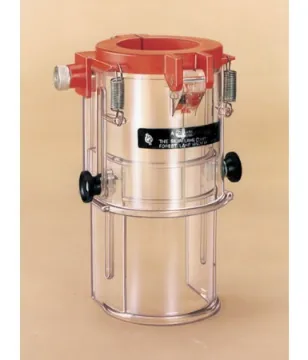

• Machine Type - Light/Bench or Pedestal • Method of attachment - secures to drilling machine spindle collar • Positive manual latch • Flip up with spring retention • Construction - moulded polycarbonate • Operation - Telescopes on contact with work piece, length adjustable vizor which encloses the work area Collar size: 62.5mm

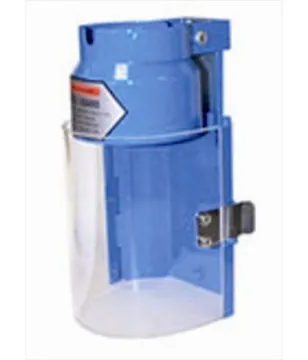

Meddings drill guard to fit Meddings Driltru: L1 L2 M2 M4 & MV4. Clamp diameter for Drill guard 64mm.

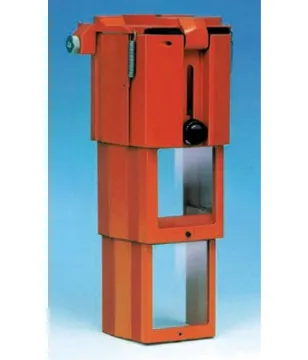

• Machine Type - Medium /Bench or Pedestal • Method of attachment - Secures around depth stop collar using fixing top to suit configuration • Positive Manual latch • Flip up with spring retention • Construction - Aluminium/Nylon with Polycarbonate Vizor which encloses the work area • Operation - Telescopes on contact with work piece, length adjustable vizor Please state collar size when ordering. Maximum chuck dia. for the MT is 63mm / MTS is 70mm.

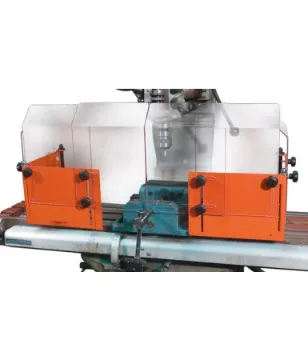

M2 Min-Max Vertical height: 250-450mm Overall length - enclosed: 475-800mm Overall length - extended: 925-1250mm Please note: We require T-slot size to match this product to your machine.

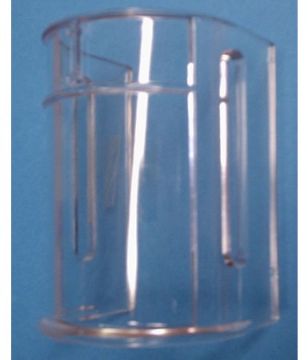

Spare vizor for BT Drill guard (590-204 & 590-204X). Constructed from scratch resistant polycarbonate.

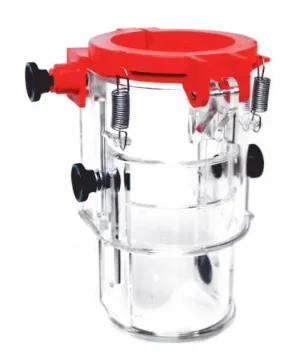

• Machine Type - Light/Bench or Pedestal • Method of attachment - secures to drilling machine spindle collar • Positive manual latch • Flip up with spring retention • Construction - moulded polycarbonate • Operation - Telescopes on contact with work piece, length adjustable vizor which encloses the work area The maximum collar size for the BT is 70mm (minimum 40mm). Please state collar size when ordering.

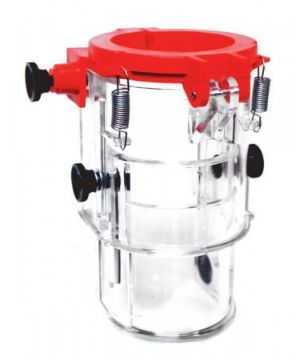

• Machine Type - Light/Bench or Pedestal • Method of attachment - secures to drilling machine spindle collar • Positive manual latch • Flip up with spring retention • Construction - moulded polycarbonate • Operation - Telescopes on contact with work piece, length adjustable vizor which encloses the work area Collar size: 64mm

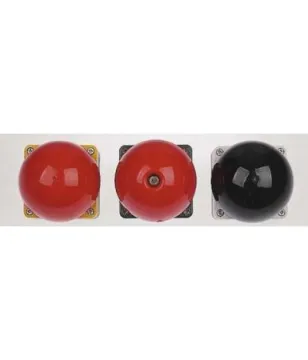

These switches can be mounted conveniently as foot / knee / palm switches and wired into the machine by a competent electrician. • Ingress protection to Ip67 • 1 N/O, 1 N/C contacts (10A) • 5 x PG13 cable entries (1 threaded) • IEC418 tamperproof, UL and CSA approved Dimensions: 94mm x 94mm

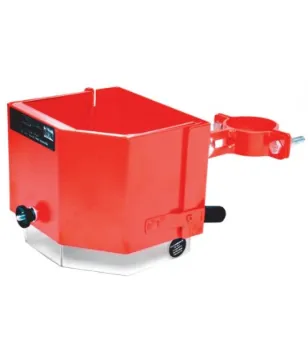

• Machine Type - Light /Bench or Pedestal (dedicated to machine make) • Method of attachment - Clips to back pillar • Positive Manual latch or interlock • Side opening • Construction - Mild steel with 4 mm polycarbonate vizor • Operation - Remains stationary allowing depth stop collar and chuck to pass through length adjustable vizor

• Machine Type - Light/ Bench or Pedestal • Method of attachment - Side fixing or clips to back pillar • Positive Manual latch or interlocked • Side opening • Construction - Moulded 5mm polycarbonate body, with 4 mm polycarbonate vizor, adjustable to suit machine depth stop bracket • Operation - Remains stationary allowing depth stop collar and chuck to pass through length adjustable vizor

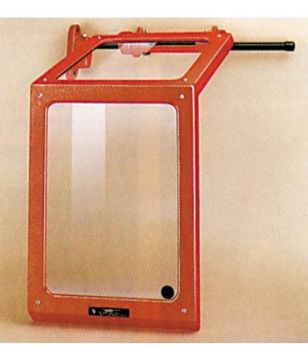

• Machine Type - Light to medium centre lathes • Method of attachment - Secures to face or top of lathe headstock • Manually adjusted to cover work area. Interlocked • Construction L6 - Cast aluminium and 4 mm polycarbonate visors • Construction L12 & L18 - Mild steel, P.V.C. skirt, 6.6 nylon pivot bushes and 4mm polycarbonate visors • Operation - Hinges to allow access to chuck and work area
