Engineering Lathes

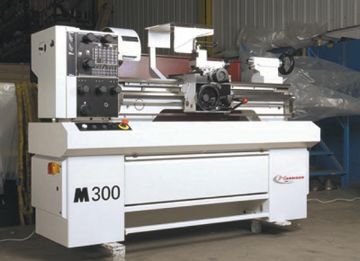

The M300 Centre lathe is a full-function lathe capable of the entire range of turning operations it is equally at home in industry, vocational training or educational establishments. Compact and sturdy, the M300 centre lathe is easy to use and has the power to deal with heavy metal removal, at the same time offering precision for fine tolerance turning. Key Features • Easy selection of spindle speeds • Smooth power transmission and quiet running • Fast and simple changeover of spindle work holding equipment • Rapid action foot controlled brake with electrical disengagement. • Universal gearbox enables quick and easy selection of metric or imperial feed rates Specification M300 Lathe Distance Between Centres*635/1000mm Swing Over Bed330mm Spindle Speeds12 speeds (40 - 2500rpm) Spindle Bore40mm Spindle NoseD1-4 Camlock Centre Height167mm Cross Slide Travel210mm Height1.40m/1.45m Width1.68m/2.13 Depth97cm/1.02m Weight710kg/790kg Motor/Power2.2kw *Dependant on tailstock, centres and tooling specified

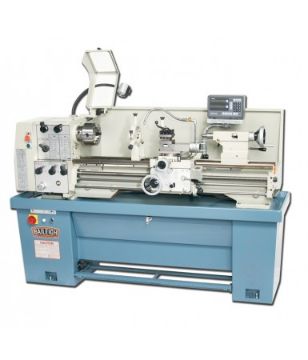

The PL-1340 is a gear head metal lathe that offers eight speeds that vary from 70 to 2000 rpm. The PL-1340 is powered by 220 volt single phase power which makes it available for those areas where power selection is limited. Key Features • Easy selection of spindle speeds • DRO as standard • 4-way quick change tool post with guard • 150mm 3 jaw chuck • Integrated coolant system Specification PL-1340 Lathe Distance Between Centres990mm Swing Over Bed330mm Spindle Speeds8 speeds (70 - 2000rpm) Spindle Bore38mm Spindle NoseD1-4 Centre Height165mm Cross Slide Travel160mm Height1500mm Width2006mm Depth838mm Weight740kg Motor/Power220V, 1 Phase 50Hz (1.5kw 2hp)

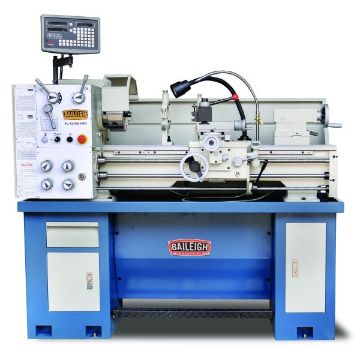

Powered by 220v single phase the Baileigh Industrial PL-1236E allows the operator to choose what voltage will suit their needs the best. Because of its versatile voltage options as well as the integrated digital readout, the PL-1236E is the perfect choice for education. The PL-1236E has an easy to use gear system that allows for taping, turning, and polishing with a range of 9 speeds from 70 to 1400 RPM. To ensure that all cuts are precise, all ways are ground and hardened to ensure long life. They also have adjustable gibs to make sure they slide as free as possible with no binding. • Distance between centres 914mm • 12inch (305mm) swing over bed • Digital read-out • 6inch three and 8inch four jaw chucks
