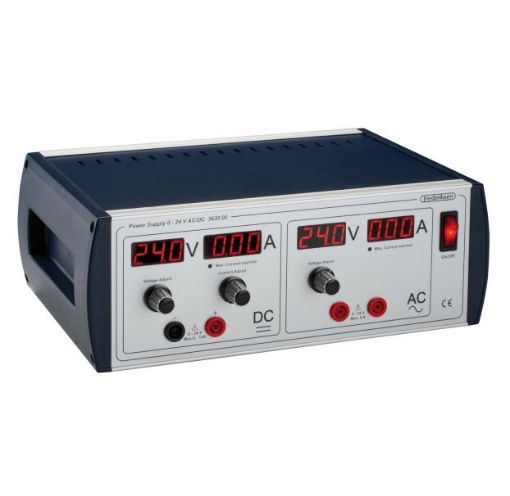

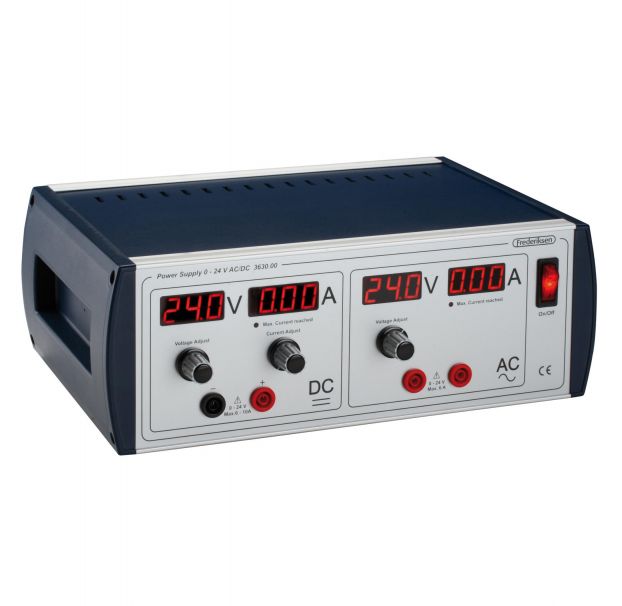

    Frederiksen Power Supply 0-24 V AC/DC

    Manufacturer: Timstar
    A highly versatile power supply for all low-voltage experiments, with continuous voltage adjustment, separate for DC and AC. The two outputs can be loaded simultaneously without interference. Four digital displays show DC and AC voltage and current. The continuously adjustable DC current limiter can be set using a screwdriver. There is an LED indicator to show when the selected maximum current is reached. The power supply also features electronic overload protection. Specifications DC Output voltage: 0-24 V (stabilised) Ripple and noise (max): 25 mVpp Output current (max): 10 A (0-12 V) Max output current falls linearly to 6 A at 24 V Electronic, continuously adjustable current limiter, adjusted with screwdriver AC Output voltage: 0-24 V (stabilised sine) Output current (max): 6 A Electronic current limiter
    SKU: SS013160
    Manufacturer part number: EL150300
    Availability:
    Price: 3565.00 AED
    i h h
    Power Supply 0-24 V Ac/Dc. This power supply features independently variable AC and DC outputs with their own voltage and current displays. Both outputs feature electronic overload protection. DC current limiter is operated through hole in the front using screw driver, thereby allowing the teacher to set current limit.DC Output:• 0-24 DC continuously variable• 10 max.• Display: % ±2 LSD• Ripple and noise: <25 mV pp• Current limiterAC Output:• 0-24 AC continuously variable• A max.• Display: % ±2 LSD• Dimensions (WxDxH: 297 225 118 mm• Weight: 2.5 kg
