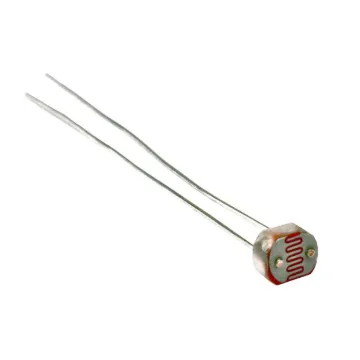

Photoconductive cadmium sulphide light dependent resistor (LDR) in a miniature epoxy sealed open frame package (4 mm dia.). Cell resistance reduces as light falling on the device increases. Typical applications include light control, cameras, toys etc. Sold as pack of 10. • Peak spectral response: 540 nm. • Light resistance: 50-100 Kohm • Dark resistance: 20 Mohm minimum • Max. voltage: 100 V • Power max: 90 mW • Working temp. range: -20 to +60°

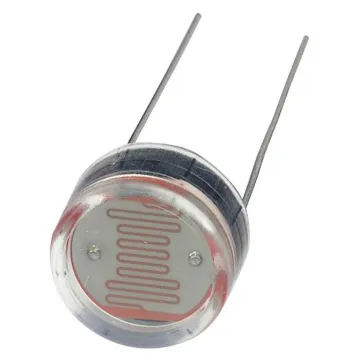

Photoconductive cadmium sulphide cell with a spectral response similar to the human eye. As light falling on the cell increases, so the resistance of the cell decreases. Peak spectral response: Typ. 550 nm. Cell resistance: 9 kΩ at 10 lux. 400 Ω at 1000 lux. Dark resistance: Min. 1 MΩ. Sold as pack of 5.
