Oscilloscopes

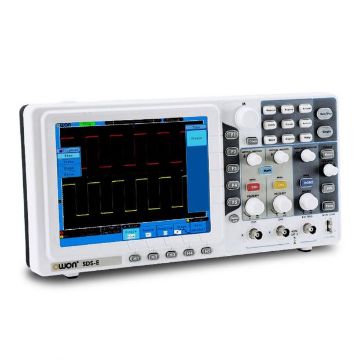

The SDS5032E is a general purpose 2 channel digital oscilloscope with large 200 mm colour display, making it ideal for education and industrial environments. Complete with USB output to PC. Specifications and Features: • Bandwidth: 30 MHz • Sample Rate (real time): 250 MSa/s (125 MSa/s per channel) • Memory depth: 10 KB • Maths functions: Add, subtract, multiply, division and FFT • 20 automatic measurements • Auto-scale function • Standard interface: USB, USB flash drive, LAN, VGA • Bandwidth: 30 MHz • Waveform storage: 15 waveforms • Vertical Sensitivity: 5 mV/div~10 V/div (at input) • Vertical resolution: 8 bit • Trigger Type: Edge, Pulse, Video, Slope • Trigger Mode: Auto, Normal, Single

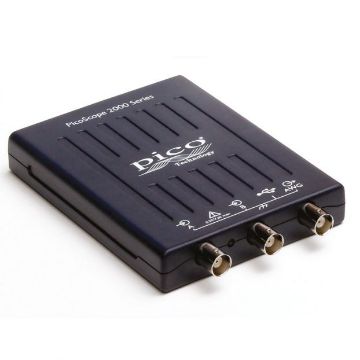

This PicoScope is extremely versatile, with an Oscilloscope, spectrum analyser and arbitrary waveform generator. Its compact size makes it extremely portable and the case is very robust. Connections are simple, comprising, channel A, channel B, signal out and USB socket. Dimensions (L x W x H): 100 x 135 x 45 mm. The USB (2.0) provides power, eliminating the need for an external power supply. The USB connection facilitates high speed data transmission. The Windows software supplied with each PicoScope is very simple to use. It features an auto setup function which reduces setup time to few minutes. Updates to the software are provided free of charge. It has an input range of: ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2 V, ±5 V, ±10 ±20 V. Specification: Model: Picoscope 2204 • Bandwith (MHz): 10 • ETS (GS/s): 5.0 • Sampling rate (MS/s): 100 • Scale (ns-s/div): 2-50 Signal Generator Output: • Buffer Size: 4k words • Vertical Resolution: 8 bits • Output Range: ±125 mV to ±2 pk-pk with ±1 offset • Output Resistance: 600 Ω • Clock Frequency: 2 MHz • Bandwidth: DC to 1 MHz

This PicoScope is extremely versatile, with an Oscilloscope, spectrum analyser and arbitrary waveform generator. Its compact size makes it extremely portable and the case is very robust. Connections are simple, comprising, channel A, channel B, signal out and USB socket. Dimensions (L x W x H): 100 x 135 x 45 mm. The USB (2.0) provides power, eliminating the need for an external power supply. The USB connection facilitates high speed data transmission. The Windows software supplied with each PicoScope is very simple to use. It features an auto setup function which reduces setup time to few minutes. Updates to the software are provided free of charge. It has an input range of: ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2 V, ±5 V, ±10 ±20 V. Specification: Model: Picoscope 2205 • Bandwith (MHz): 20 • ETS (GS/s): 10.0 • Sampling rate (MS/s): 200 • Scale (ns-s/div): 1-50 Signal Generator Output: • Buffer Size: 4k words • Vertical Resolution: 8 bits • Output Range: ±125 mV to ±2 pk-pk with ±1 offset • Output Resistance: 600 Ω • Clock Frequency: 2 MHz • Bandwidth: DC to 1 MHz

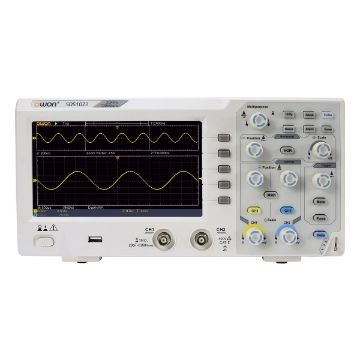

A digital storage oscilloscope, designed with simplicity in mind. The vast array of advanced measuring options found in most digital oscilloscopes is mostly omitted, leaving only the essential features required in schools. This means the unit is very accessible for students and teachers alike. • 7"" colour screen (800 600) • 20 MHz Bandwidth • Sample rate: 100 MS/s • Dual channel • Automatic measurement • Dimensions: 301 x 152 x 70 mm
