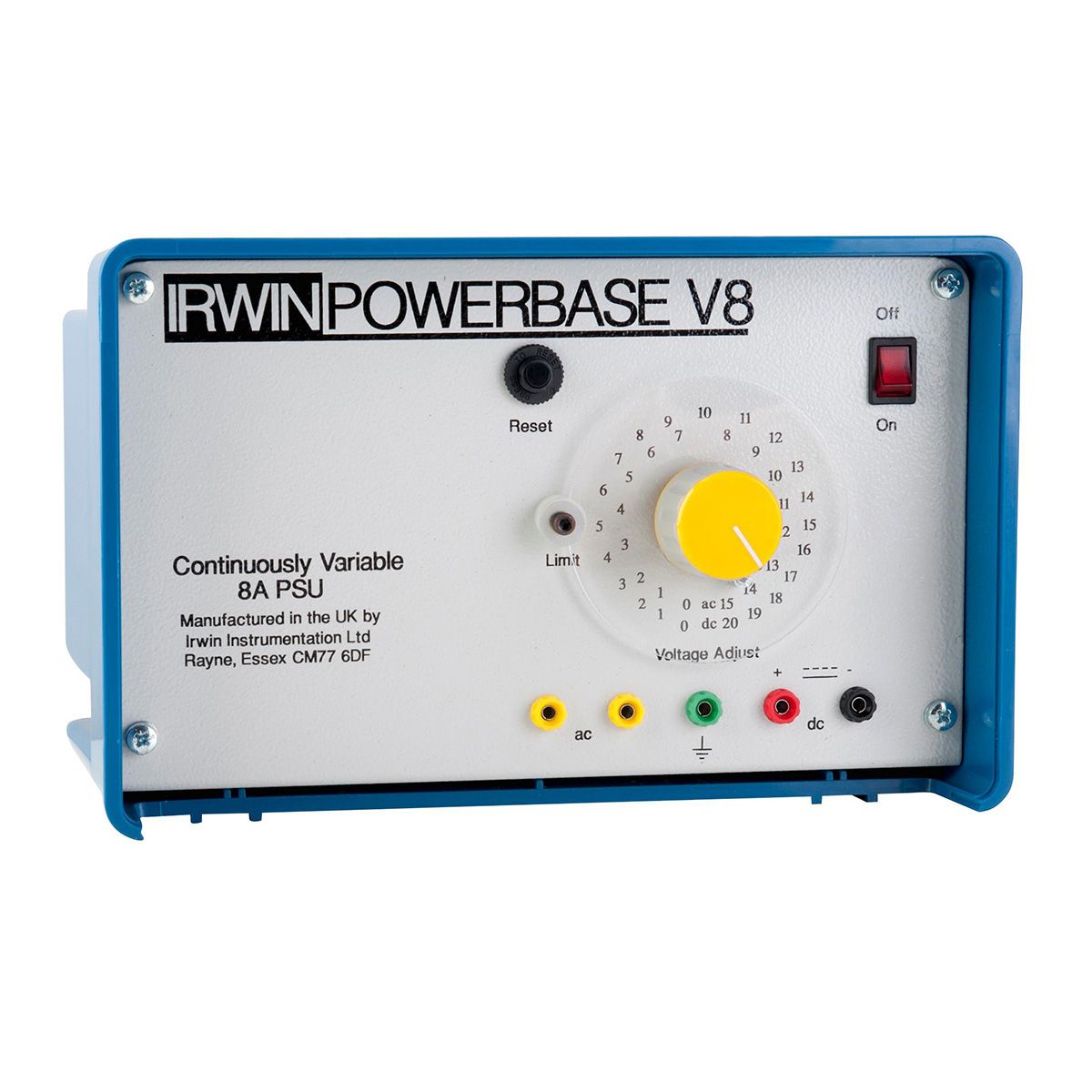

    Irwin Powerbase V8

    Manufacturer: Timstar
    The Powerbase V8 comes with a high-power rotary transformer and a high specification toroid transformer. The unit supplies 0-20 V smoothed DC and 0-16 V AC at 8 A. The output is continuously variable and protected by a panel mounted thermal cut out. An output limiter is fitted which allows the user to preset the maximum voltage available. •A heavy-duty power supply for powering laboratory experiments •Heavy duty variable transformer and high-power toroid transformer •Continuously variable output of 0 to 16 V AC and 0 to 20 V DC, capacitor smoothed •Output current 8 A. Output voltages are rated at 8 A load so higher voltages are available at less output current. •Manufactured in the UK with 5 years warranty •AC and DC outputs may be used simultaneously up to rated current. •Colour coded 4 mm sockets. •Maximum voltage limiter operated by Allen key •Push button cut-out to protect against overload and short circuit conditions •Mains Input 230 V, 50 Hz •Fusing: 5 A mains plug fuse
    SKU: SS013179
    Manufacturer part number: EL130299
    Availability:
    Price: 1462.43 AED
    i h h
    Powerbase V8. Blue. This is an updated version of the Irwin Powerbase 32. Essentially it is the same as the 32 but has higher power rotary transformer and high specification toroid transformer replaces the original chassis transformer. The unit supplies 0-20 smoothed DC and 0-16 AC at amps. Output is continuously variable and protected by panel mounted thermal cut out. An output limiter is fitted which allows the user to preset the maximum voltage available.
