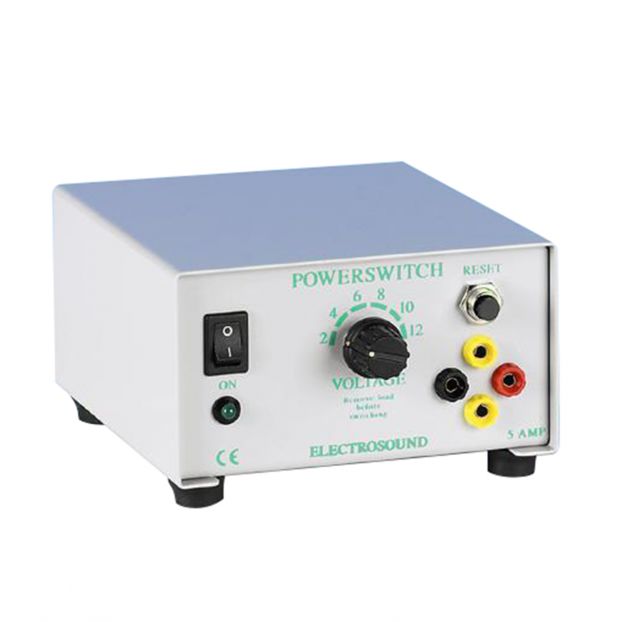

Powerswitch Power Supply

A compact power supply offering 2, 4, 6, 8, 10, and 12 V at currents of up to 5 A. Both DC and AC outputs may be used simultaneously up to the rated output. The output is protected by a push button cut-out. The unit is 2 A fused on the back panel and comes complete with a moulded mains lead and plug. 4 units are designed to fit in a shallow Gratnell tray. Specification •Input Supply voltage 230 V DC •Supply frequency 50 Hz •Mains fuse Rear panel 2 A, 20 mm quick blow Mains plug 3 A •Output Voltage 2, 4, 6, 8, 10, 12 V AC nominal 1, 3, 5, 7, 9, 11 V full wave rectified DC nominal •Maximum output current 5 A AC or DC •Manufactured in the UK
