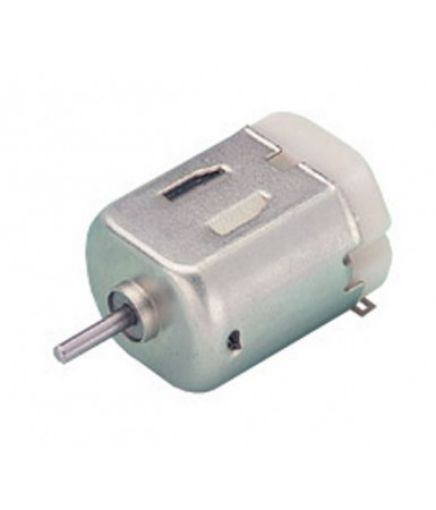

DC Motor 1.5-3V Model 10

Miniature circular DC motor, ideal for models and educational applications.Nominal voltage 3.0V with operating range 1.5 to 4.5V. The two flat sides enable easy mounting onto a panel or PCB. Rotation is counter-clockwise (as viewed from shaft end). Nominal voltage: 3.0V Operating range: 1.5-4.5V No load speed: 16000 RPM No load current: 0.4A Speed at max. efficiency: 12400 RPM Current at max. efficiency:1.5A Torque: 11.9g-cm Dimensions: L: 25 (exc. shaft) W:20.1 H:15.1mm. Shaft length 8.1x 2.0 dia. Weight 19g approx.
