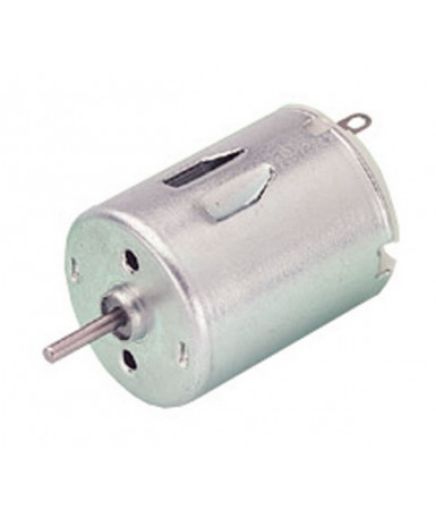

High Torque DC Motor Model 28

A high torque miniature DC motor with an operating range of 1.5V to 6.0V, suitable for educational and modelling applications. Rotation is clockwise as viewed from shaft end. Dimensions: L: 30.5 (exc. shaft) x 24mm dia. Shaft length 10mm x 2.0mm dia. Weight 42g approx. RoHS compliant Nominal voltage: 3.0V Operating range: 1.5-6.0V No load speed: 9600 RPM ±10% No load current: 0.25A Speed at max. efficiency: 7790 RPM Current at max. efficiency: 1.14A Output: 1.58W Torque: 19.9g-cm Stall torque: 110g-cm min. Stall current: 5.2A max.
