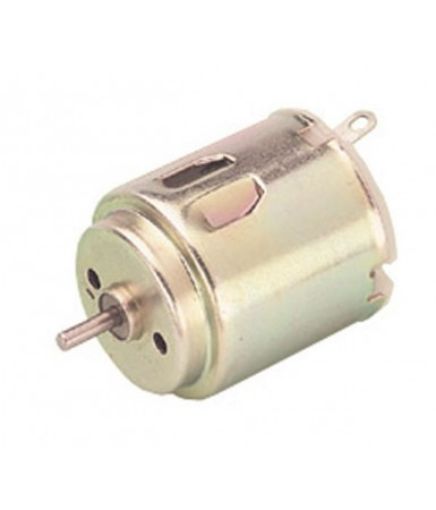

DC Motor 1.5-4.5V Model 18

Medium torque DC motor with operating range 1.5 to 4.5V, ideal for educational and modelling applications. Rotation is clockwise as viewed from shaft end. Dimensions: L: 27 (exc. shaft) x 24mm dia. Shaft length 8.6x 2.0 dia. Weight 28g approx. Nominal voltage: 3.0V Operating range: 1.5-4.5V No load speed: 6600 RPM ±10% No load current: 0.13A Speed at max. efficiency: 5100 RPM Current at max. efficiency: 0.4A Output: 0.42W Torque: 11.6g-cm Stall torque: 55g-cm min. Stall current: 1.4A max.
