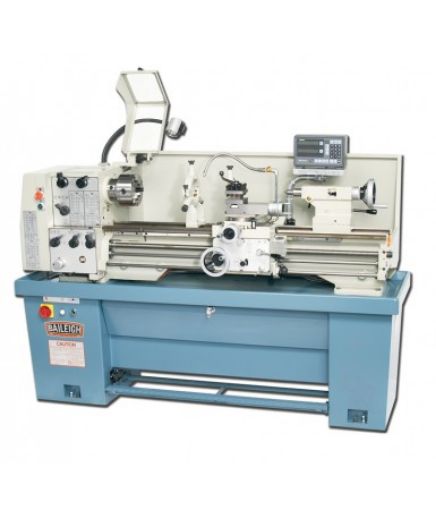

Baileigh Metal Lathe PL-1340
The PL-1340 is a gear head metal lathe that offers eight speeds that vary from 70 to 2000 rpm. The PL-1340 is powered by 220 volt single phase power which makes it available for those areas where power selection is limited. Key Features • Easy selection of spindle speeds • DRO as standard • 4-way quick change tool post with guard • 150mm 3 jaw chuck • Integrated coolant system Specification PL-1340 Lathe Distance Between Centres990mm Swing Over Bed330mm Spindle Speeds8 speeds (70 - 2000rpm) Spindle Bore38mm Spindle NoseD1-4 Centre Height165mm Cross Slide Travel160mm Height1500mm Width2006mm Depth838mm Weight740kg Motor/Power220V, 1 Phase 50Hz (1.5kw 2hp)
SKU: SS199513
Manufacturer part number: 550-040
