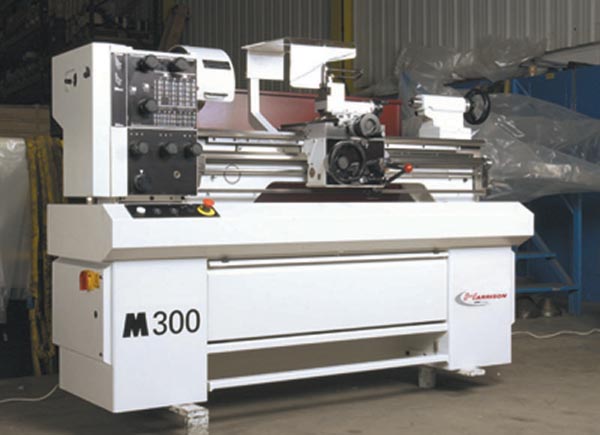

Harrison M300 Lathe 635mm

The M300 Centre lathe is a full-function lathe capable of the entire range of turning operations it is equally at home in industry, vocational training or educational establishments. Compact and sturdy, the M300 centre lathe is easy to use and has the power to deal with heavy metal removal, at the same time offering precision for fine tolerance turning. Key Features • Easy selection of spindle speeds • Smooth power transmission and quiet running • Fast and simple changeover of spindle work holding equipment • Rapid action foot controlled brake with electrical disengagement. • Universal gearbox enables quick and easy selection of metric or imperial feed rates Specification M300 Lathe Distance Between Centres*635/1000mm Swing Over Bed330mm Spindle Speeds12 speeds (40 - 2500rpm) Spindle Bore40mm Spindle NoseD1-4 Camlock Centre Height167mm Cross Slide Travel210mm Height1.40m/1.45m Width1.68m/2.13 Depth97cm/1.02m Weight710kg/790kg Motor/Power2.2kw *Dependant on tailstock, centres and tooling specified
