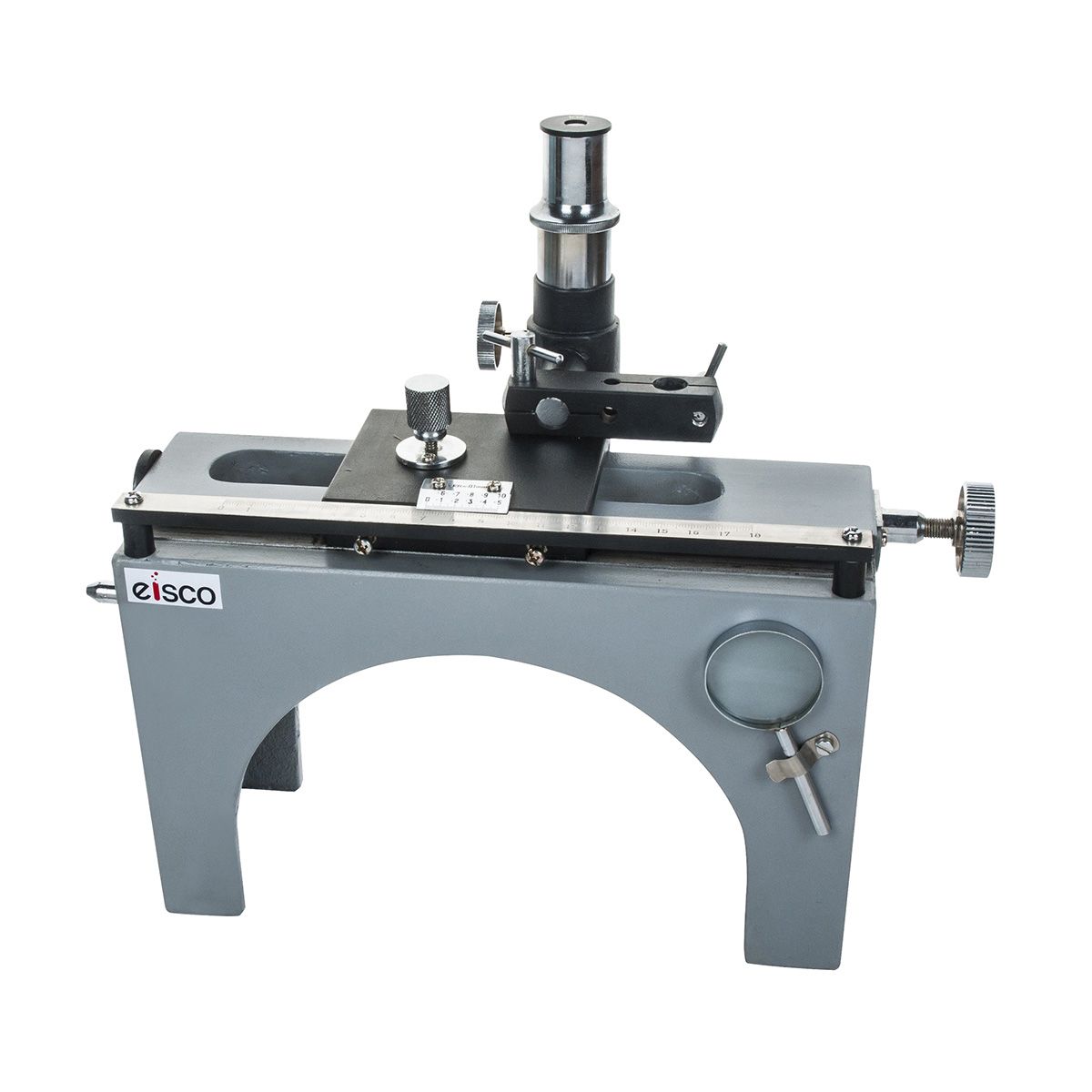

    Intermediate Vernier Microscope

    Manufacturer: Timstar
    The unit is built on heavy cast-iron base. The movement is controlled by knob at the side of the base, and can be fixed in any position with clamping screw, and Vernier scale allows precise measurement to 0.01 mm. The carriage has two locations for the microscope, which allows it to be mounted with its axis in any position relative to travel. The microscope itself features 7x magnification Ramsden objective, 3x magnification 50 mm FL eyepiece, and cross-piece graticule, with rack-and-pinion focusing. Supplied in polished wooden case.
    SKU: SS018801
    Manufacturer part number: MI180000
    Availability:
    Price: 2371.10 AED
    i h h
    Vernier Microscope Intermediate. The unit is built on heavy cast-iron base.The movement is controlled by knob at the side of the base, and can be fixed in any position with clamping screw, and Vernier scale allows precise measurement to 0.01 mm.The carriage has two locations for the microscope, which allows it to be mounted with its axis in any position relative to travel. The microscope itself features 7x magnification Ramsden objective, 3x magnification 50 mm FL eyepiece, and cross-piece graticule, with rack-and-pinion focusing.Supplied in polished wooden case.
