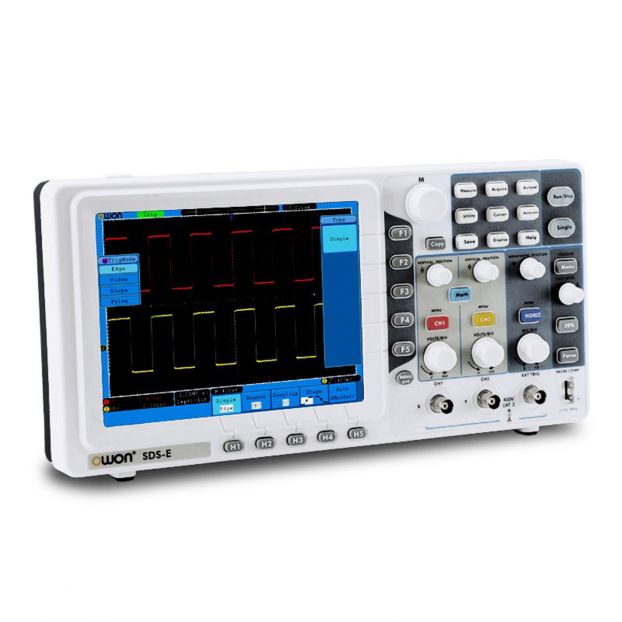

    OWON Colour Digital Oscilloscope

    Manufacturer: Timstar
    The SDS5032E is a general purpose 2 channel digital oscilloscope with large 200 mm colour display, making it ideal for education and industrial environments. Complete with USB output to PC. Specifications and Features: • Bandwidth: 30 MHz • Sample Rate (real time): 250 MSa/s (125 MSa/s per channel) • Memory depth: 10 KB • Maths functions: Add, subtract, multiply, division and FFT • 20 automatic measurements • Auto-scale function • Standard interface: USB, USB flash drive, LAN, VGA • Bandwidth: 30 MHz • Waveform storage: 15 waveforms • Vertical Sensitivity: 5 mV/div~10 V/div (at input) • Vertical resolution: 8 bit • Trigger Type: Edge, Pulse, Video, Slope • Trigger Mode: Auto, Normal, Single
    SKU: SS013144
    Manufacturer part number: EL101460
    Availability:
    Price: 2448.97 AED
    i h h
    Colour Digital Oscilloscope. The SDS5032E is general purpose channel digital oscilloscope with large 200mm colour display, making it ideal for education and industrial environments. Complete with USB output to PC.Specifications and Features:• Bandwidth: 30MHz • Sample Rate (real time): 250MS/s • Horizontal Scale (s/div) 4ns/div~100s/div, step by 1~2~4• Rise Time (at input, typical) ≤11ns • Channels: + (external) • Display: 20cm (8"") colour LCD, TFT display, 800 600 pixels, 65535 colours• Input Impedance: 1MΩ 2%, in parallel with 15pF±5pF• Channel Isolation: 50Hz: 100: 1, 10MHz: 40: • Max Input Voltage: 400V (PK PK) (DC+AC, PK PK) • DC Gain Accuracy: ±3% • Record Length: 10K • DC Accuracy (average): Average≥16: (3% reading 0.05 div) for â–³V • Probe Attenuation Factor: 1X, 10X, 100X, 1000X • Sample Rate Relay Time Accuracy: ±100ppm • Input Coupling: DC, AC, and GND• Vertical Resolution (A/D): bits resolution (2 Channels simultaneously) • Vertical Sensitivity: 5mV/div~10V/div (at input) • Trigger Type: Edge, Pulse, Video, Slope • Trigger Mode: Auto, Normal, Single • Trigger Level: ±6 divisions from screen centre • Line Field Frequency (video): NTSC, PAL, and SECAM standard • Waveform Math: +, -, x, ÷, FFT • Waveform Storage: 15 waveforms• Lissajous Figure Bandwidth: Full bandwidth • Lissajous Figure Phase Difference: ±3 degrees• Communication Interface: USB, USB flash disk storage, Pass Fail, LAN, VGA (optional) • Power Supply 100V 240V AC, 50/60Hz, CAT II• Power Consumption <18W • Fuse 2A, class, 250V • Battery not supported • Dimension (WxHxD) 348 170 78 (mm) • Weight: 1.50 kg
