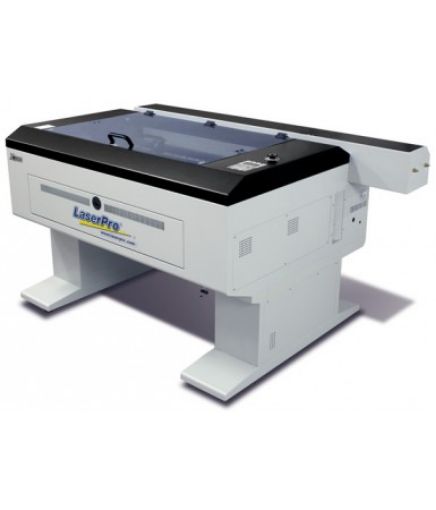

    X380RX 80w Glass Tube Laser Package

    Manufacturer: TSL
    All of our laser packages are supplied complete with everything required for a complete educational solution including recirculatory extraction unit, connection kit, design software. We also provide flexible training solutions with onsite installation and training or additional training sessions should you require a 'top-up.' • Easy-to-use Control Panel • Programmable Origin • Rigid and Reliable Construction • Motion System with DC Servo Motor giving higher accuracy and excellent cutting output • Pass-through Front and Rear Doors • Superb Cutting Quality • Extensive driver functions such as smart centre, scaling, centre mode • Supplied with water chiller • SmartPIN Auto Focus • Possible to upgrade to AAS contour cutting feature WARRANTY INFORMATION 12 month warranty on the laser tube, 2 year warranty on the machine (longer than many similar low cost lasers) 12 month warranty on the water chiller
    SKU: SS132291
    Manufacturer part number: 180-504
    Availability:
    Price: 104586.30 AED
    i h h
    X380 PACKAGE DETAILS
    All of Laser Cutter packages are supplied with the following:

    Fume Extraction Unit*
    BOFA Oracle or AD1000 (now with auto cut off safety feature)

     Project CD and project folder
    Contains drawings & settings in CorelDraw format ready for use
    Honeycomb cutting table
    To vent out heat and smoke when cutting materials
     Material pack
    Contains enough materials to make the projects on the CD
    CorelDraw
    No need to buy it! You can access our project CD
     On-site training
    A day of training organised to suit your requirements
    Printer Driver
    Provides the output to the laser, with 4 different modes
     Lifetime telephone support
    For advice on materials or technical/servicing enquiries
    The X380 Laser Cutter offers an economical alternative for laser cutting and engraving. It is equipped with dependable a sealed CO2 laser which offers a reliable source of laser power for your cutting and engravingrequirements at a much lower cost.X380 FEATURES
    • 960 x 610mm working area
    •
    • Supplied with water chiller
    • Easy to use control panel
    •
    • Emergency stop
    • Rigid and reliable construction
    •
    • SmartPIN Auto Focus
    • Motion system with DC servo motor giving higher accuracy and excellent cutting output
    •
    • Extensive driver functions such as smart centre, scaling, centre mode
    • Superb cutting quality
    •
    X380 SPECIFICATION
    Work area:910 x 610mm
    Max workpiece:1040 x 750 x 150mm
    Table size:1085 x 750mm
    Dimensions:1800 x 1092 x 1017mm
    Laser source:Sealed CO2 laser
    Drive:Closed-loop DC servo control
    Computer interface:Standard printer port and USB 2.0 port
    Memory buffer:32mb standard
    Cooling:Water cooled
    ExtractionOracle
    WARRANTY INFORMATION24 months machine warranty, 12 months laser tube warranty, longer than many similar low cost lasers - Additional 12 months warranty on the laser tube is available.
