X252 PACKAGE DETAILS| All of Laser Cutter packages are supplied with the following: |
Fume Extraction Unit*
BOFA Oracle or AD1000 (now with auto cut off safety feature) | | Project CD and project folder
Contains drawings & settings in CorelDraw format ready for use |
Honeycomb cutting table
To vent out heat and smoke when cutting materials | | Material pack
Contains enough materials to make the projects on the CD |
CorelDraw
No need to buy it! You can access our project CD | | On-site training
A day of training organised to suit your requirements |
Printer Driver
Provides the output to the laser, with 4 different modes | | Lifetime telephone support
For advice on materials or technical/servicing enquiries |

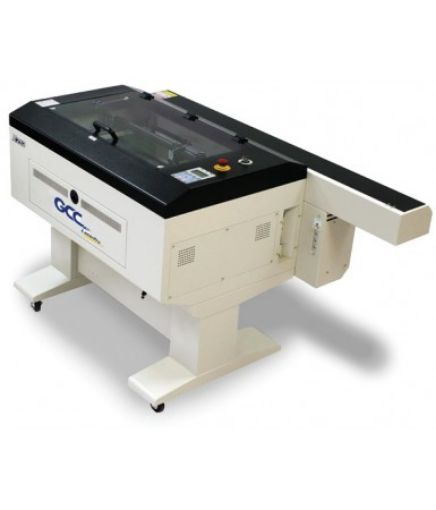

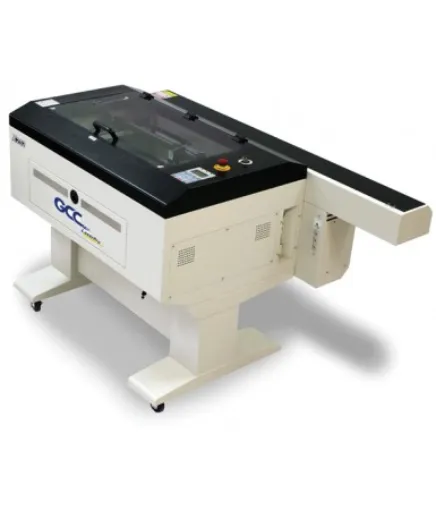

The X252 Laser Cutter offers an economical alternative for laser cutting and engraving. It is equipped with dependable a sealed CO2 laser which offers a reliable source of laser power for your cutting and engravingrequirements at a much lower cost.
X252 FEATURES- 635 x 458mm working area
| | - Extensive driver functions such as smart centre, scaling, centre mode
|
- Easy-to-use control panel
| | - Supplied with water chiller
|
- Programmable origin
| | - Emergency stop
|
- Motion system with DC servo motor giving higher accuracy and excellent cutting output
| | - SmartPIN Auto Focus
|
X252 SPECIFICATION| Work area: | 635 x 458mm |
| Max workpiece: | 800 x 570 x 165mm |
| Table size: | 790 x 530mm |
| Dimensions: | 1650 x 930 x 1040mm |
| Laser source: | Sealed CO2 laser |
| Drive: | Closed-loop DC servo control |
| Computer interface: | Standard printer port and USB 2.0 port |
| Memory buffer: | 32mb standard |
| Cooling: | Water cooled |
| Extraction | Oracle |
WARRANTY INFORMATION24 months machine warranty, 12 months laser tube warranty, longer than many similar low cost lasers - Additional 12 months warranty on the laser tube is available.
