Signal Generator & Amplifier

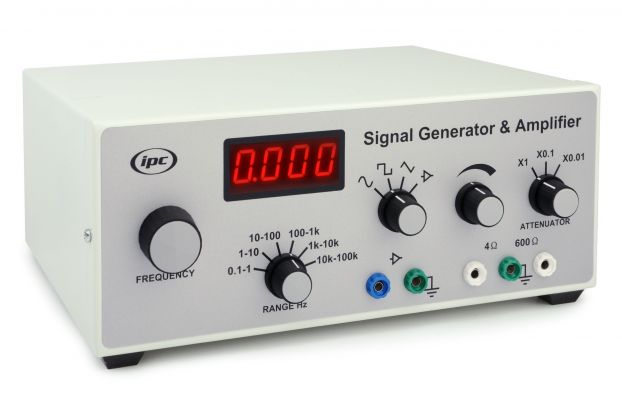

This signal generator and amplifier provides sine, square or triangular waveforms. Frequency selection is by a switched range and continuously variable fine adjustment control. The frequency is displayed on an LED display. All connections are via pairs of labelled 4 mm sockets with one of each pair connected to earth. An illuminated on/off switch is mounted on the rear panel adjacent to a fused IEC mains inlet. Enclosed in a robust metal case with a durable powder coated finish. Signal Generator Mode: •Waveforms - Sine, Square & Triangular, sinewave distortion 1% on all ranges, square wave rise time 1 µs approx. •Frequency Range - 0.1 Hz to 100 kHz in six ranges, accuracy ±5% on all ranges •Voltage Output - 0 to 10 V (peak to peak), continuously variable across all ranges & waveforms •4 Ω Output - Power output of 4 W over entire frequency & waveforms, will drive loudspeaker or other suitable devices •600Ω Output - Provides attenuation settings: x 1, x 0.1 & x 0.01, all ±5% Amplifier Mode: •Performance - Voltage gain 0 to 100, Input impedance 1 MΩ, Max. input 200 mV (pk to pk), Output spec. same as above •Frequency Response - Frequency response 1 Hz to 100 kHz (-3 dB bandwidth)
