Microphone

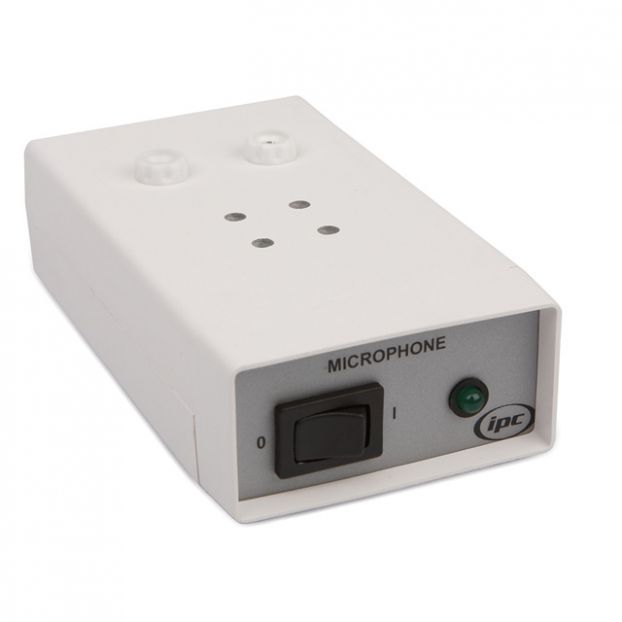

This multi-purpose microphone has been designed for a number of applications and experiments requiring the use and demonstration of audio input, including voice and music waveforms. The electret condenser type microphone is mounted in a moulded plastic box with two standard 4 mm output connectors, an on/off switch and a power indicator. • Electrical Supply: 9V PP3 battery (supplied) • Dimensions: 68 x 120 x 36 mm • Mass: 0.15 kg • Sensitivity: -42 db • Frequency Response: 20 Hz to 20 kHz • Output Impedance: 2.2 kohm
