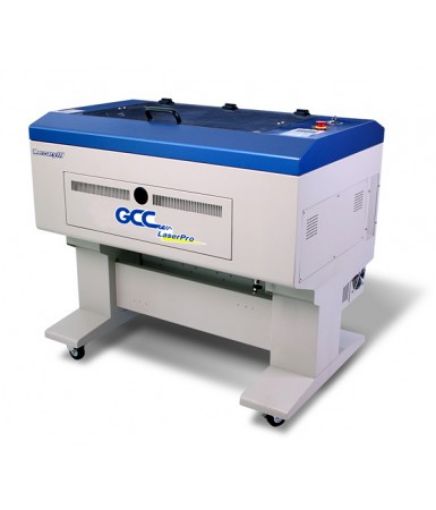

Mercury 12W Laser Package

Manufacturer: TSL
All of our laser packages are supplied complete with everything required for a complete educational solution including recirculatory extraction unit, connection kit, design software. We also provide flexible training solutions with onsite installation and training or additional training sessions should you require a 'top-up.' • Popular all round laser engraver with stable and satisfactory performance • Intuitive control panel allows easy operations • Low maintenance motion system • Emergency button and key-switch add an extra layer of safety WARRANTY INFORMATION 24 months machine and laser tube warranty. Additional 12 months warranty on machine and laser tube is available.
SKU: SS132341
Manufacturer part number: 180-203
Availability:
Price: 97191.98 AED
i h h
MERCURY III PACKAGE DETAILS
All of Laser Cutter packages are supplied with the following:

Fume Extraction Unit*
BOFA Oracle or AD1000 (now with auto cut off safety feature)

 Project CD and project folder
Contains drawings & settings in CorelDraw format ready for use
Honeycomb cutting table
To vent out heat and smoke when cutting materials		 Material pack
Contains enough materials to make the projects on the CD
CorelDraw
No need to buy it! You can access our project CD		 On-site training
A day of training organised to suit your requirements
Printer Driver
Provides the output to the laser, with 4 different modes		 Lifetime telephone support
For advice on materials or technical/servicing enquiries
MERCURY III FEATURES
  • 635 x 458mm working area
    		•
  • Drag-n-engrave
  • Popular all round laser engraver with stable and satisfactory performance
    		•
  • RoHS compliance
  • Intuitive control panel allows easy operations
    		•
  • Low maintenance motion system
  • Flexible 3D and stamp engraving
    		•
  • Emergency button and key-switch add a extra layer of safety
  • Closed-loop DC servo motor
    		•
  • Patented auto focus
    		•
MERCURY III SPECIFICATION
Work area:635 x 457mm (A2+
Max workpiece:800 x 570 x 165mm
Max speed:1066mm (42”) per second
Memory:16Mb standard - upgradable to 32Mb
Connection:Parallel & Serial
Power:12watts
Dimensions:(LxWxH) 1125 x 720 x 1005mm
Extraction:Oracle
CUTTING CAPABILITIES
Laser Power12W25W40W
Acrylic sheet up to8mm20mm30mm
Birch ply up to4mm6mm9mm
Laser ply up to6mm9mm12mm
MDF up to4mm9mm12mm
WARRANTY INFORMATION24 months machine and laser tube warranty. Additional 12 months warranty on machine and laser tube is available.
