Maltese Cross Tube

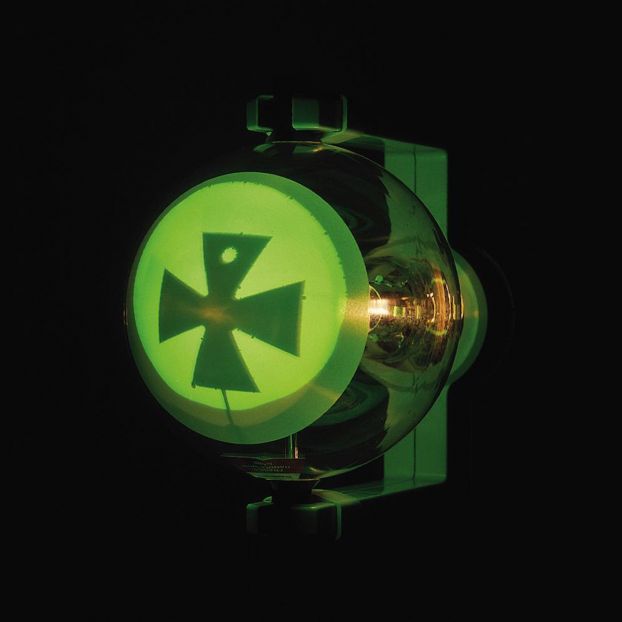

For demonstrating the straight propagation of electron beams in field-free spaces by projecting the shadow of Maltese cross on fluorescent screen. Also intended for observing the focusing of electron beams by magnetic fields as an introduction to electron optics. The lower section of the maltese cross has hole 3 mm dia. which makes it possible to ascertain the orientation of the cross's shadow under the influence of magnetic fields. Specifications Max. filament voltage: 6.3 V AC Max. anode voltage: 5 kV Anode current: approx. 0.1 mA at 4 kV To perform experiments using the Maltese cross tube, the following equipment is also required: •1 Tube holder (RA67550) and •1 High voltage power supply 5 kV (115 V, 50/60 Hz) or 1 High voltage power supply 5 kV (230 V, 50/60 Hz) •1 Coil from Helmholtz pair of coils (RA67560) •1 DC Power Supply 20 V, 5 A (115 V, 50/60 Hz) or 1 DC Power Supply 20 V, 5 A (230 V, 50/60 Hz) •1 Bar magnet
