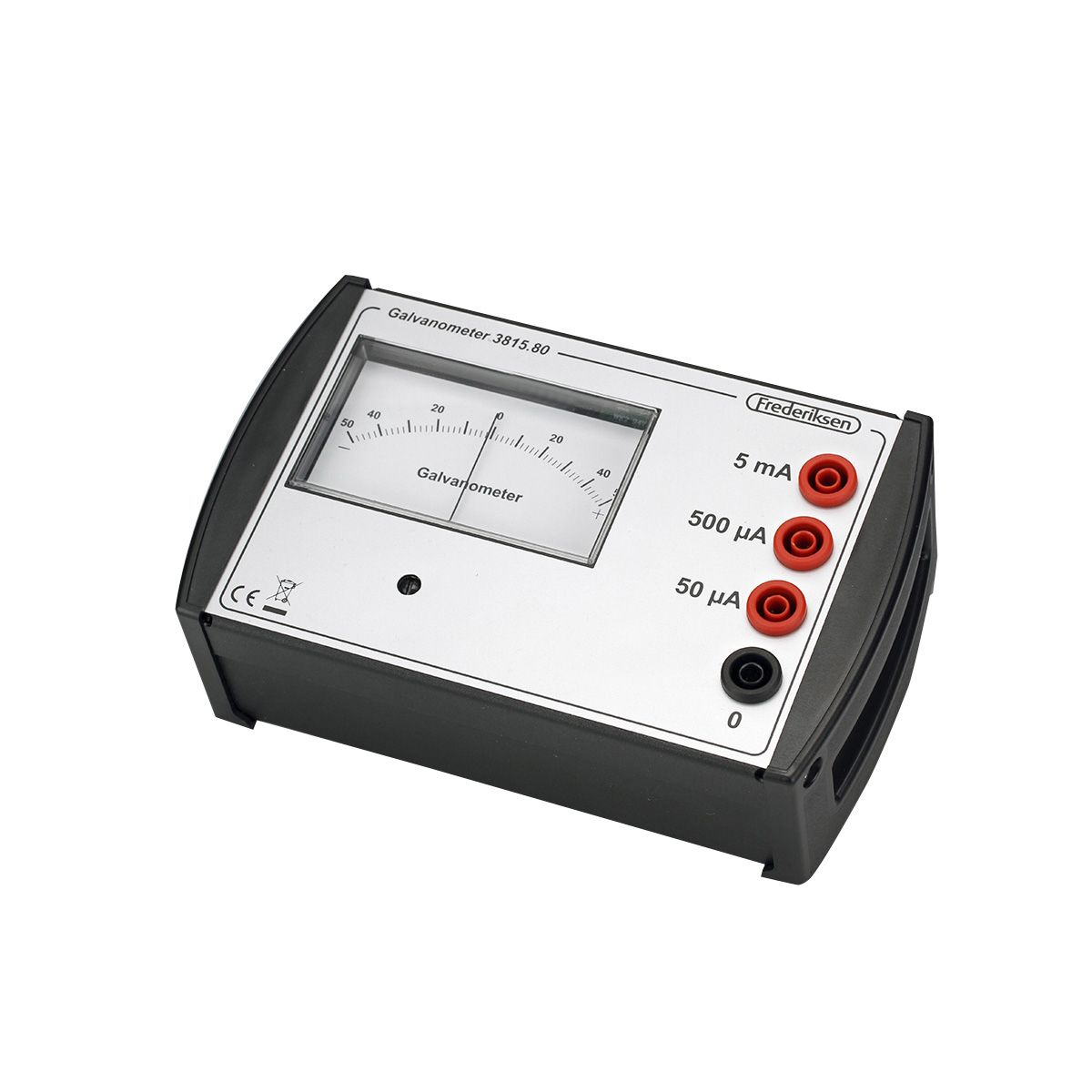

    Galvanometer, Premium

    Manufacturer: Timstar
    This galvanometer, specifically designed for use by students, is sturdy but sensitive instrument for the measurement of small currents. The instrument has centre-zero scale and three current ranges and is electronically protected against overload, tolerating overloads of up to up to A for at least 10 seconds. • DC ranges: ± 5 mA; ± 500 μA; ±50 μA • Centre-zero scale • Precision: ± 5 % of full scale • Internal resistance: ± 5 mA: ca. Ω; ± 500 µA: ca. 90 Ω; ± 50 µA: ca. 900 Ω • Electronically protected against overload • Dimensions: 158 x 108 x 56 mm • Scale length: 72 mm
    SKU: SS016176
    Manufacturer part number: EL170450
    Availability:
    Price: 948.60 AED
    i h h
    Galvanometer Premium. This galvanometer, specifically designed for use by students, is sturdy but sensitive instrument for the measurement of small currents. The instrument has centre-zero scale and three current ranges and is electronically protected against overload, tolerating overloads of up to up to A for at least 10 seconds.• DC ranges: 5 mA; 500 μA; ±50 μA• Centre-zero scale• Precision: 5 of full scale• Internal resistance: 5 mA: ca. Ω; 500 µA: ca. 90 Ω; 50 µA: ca. 900 Ω• Electronically protected against overload• Dimensions: 158 108 56 mm• Scale length: 72 mm
