Armature, Laminated
Laminated I-core. Dimensions (W x H x L): 20 x 20 x 83 mm. Mass: 225 g.
140.71 AED
Transformer Coil Set, Student, Blue, 200 Turns
Coils to fit EL150800 and EL150806. Made of coloured plastic with 4 mm safety jack connectors. Armatures available separately. The coils are provided with transparent, adhesive polyester foil with effective voltage insulation up to 4500 V to reduce the risk of electric shock. • Hole size: 20.5 x 20.5 mm • Max. current: 2 A • Resistance: 0.7 Ω • Thread diameter: 0.9 mm • Inductance: Approximately 680 µH
193.67 AED
Transformer Coil Set, Student, Yellow, 400 Turns
Coils to fit EL150800 and EL150806. Made of coloured plastic with 4 mm safety jack connectors. Armatures available separately. The coils are provided with transparent, adhesive polyester foil with effective voltage insulation up to 4500 V to reduce the risk of electric shock. • Hole size: 20.5 x 20.5 mm • Max. current: 2 A • Resistance: 0.7 Ω • Thread diameter: 0.9 mm • Inductance: Approximately 680 µH
217.39 AED
Transformer Coil Set, Student, Grey, 800 Turns
Coils to fit EL150800 and EL150806. Made of coloured plastic with 4 mm safety jack connectors. Armatures available separately. The coils are provided with transparent, adhesive polyester foil with effective voltage insulation up to 4500 V to reduce the risk of electric shock. • Hole size: 20.5 x 20.5 mm • Max. current: 2 A • Resistance: 0.7 Ω • Thread diameter: 0.9 mm • Inductance: Approximately 680 µH
211.06 AED
Transformer Coil Set, Student, Red, 1600 Turns
Coils to fit EL150800 and EL150806. Made of coloured plastic with 4 mm safety jack connectors. Armatures available separately. The coils are provided with transparent, adhesive polyester foil with effective voltage insulation up to 4500 V to reduce the risk of electric shock. • Hole size: 20.5 x 20.5 mm • Max. current: 2 A • Resistance: 0.7 Ω • Thread diameter: 0.9 mm • Inductance: Approximately 680 µH
245.06 AED
Galvanometer Insert
For building a simple galvanometer. The insert consists of a permanent magnet with a pointer. The device is fitted with 0-centre scale. Compatible with coils EN140105-EN140120
231.22 AED

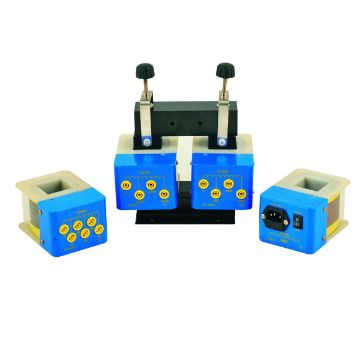

Demountable Transformer Kit, Standard
A laminated, low loss core on which to attach coils in different combinations to demonstrate the principle of step-up and step-down transformers. Various coils can be used for GCSE physics and A-Level physics to show how transformers are used in domestic electrical appliances and in the National Grid for power transmission. Demonstrations work well with the Interscale Demonstration Meter EL52300. The core is made up of highly permeable U-shaped metal sheeting, which can be closed via two clamps with tightening screws. The cross-section of the core measures 40 x 40 mm. Contents: • Transformer core • 1x 6000 turn, 0.2 A coil, with tappings every 2000 turns • 1x 1200 turn, 1.25 A coil, with tappings at 300 & 600 turns • 1x 72 turn, 12 A coil, with tappings at 6, 30, 54, and 66 turns • 1x 600 turn, 2.5A coil, with mains input, switch and protective fuse The Premium Version is supplied in Gratnells tray with insert.
1936.73 AED

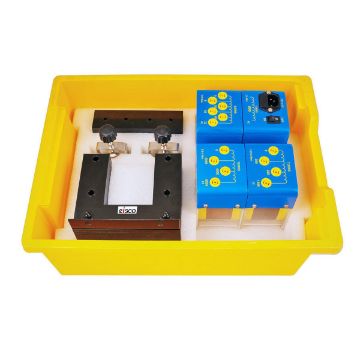

Demountable Transformer Kit, Premium
A laminated, low loss core on which to attach coils in different combinations to demonstrate the principle of step-up and step-down transformers. Various coils can be used for GCSE physics and A-Level physics to show how transformers are used in domestic electrical appliances and in the National Grid for power transmission. Demonstrations work well with the Interscale Demonstration Meter EL52300. The core is made up of highly permeable U-shaped metal sheeting, which can be closed via two clamps with tightening screws. The cross-section of the core measures 40 x 40 mm. Contents: • Transformer core • 1x 6000 turn, 0.2 A coil, with tappings every 2000 turns • 1x 1200 turn, 1.25 A coil, with tappings at 300 & 600 turns • 1x 72 turn, 12 A coil, with tappings at 6, 30, 54, and 66 turns • 1x 600 turn, 2.5A coil, with mains input, switch and protective fuse The Premium Version is supplied in Gratnells tray with insert.
2371.50 AED

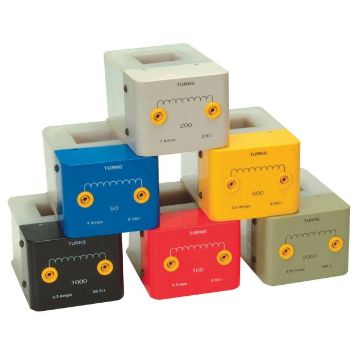

Demountable Transformer Coil, 50 Turns, 4 A, 0.15 Ohms
To fit the EL180820 demountable transformer kit. Fits 40 x 40 mm core.
273.51 AED
Demountable Transformer Coil, 100 Turns, 2 A, 0.55 Ohms
To fit the EL180820 demountable transformer kit. Fits 40 x 40 mm core.
273.51 AED
Demountable Transformer Coil, 200 Turns, 1 A, 2.5 Ohms
To fit the EL180820 demountable transformer kit. Fits 40 x 40 mm core.
273.51 AED
Demountable Transformer Coil, 500 Turns, 0.5 A, 8.95 Ohms
To fit the EL180820 demountable transformer kit. Fits 40 x 40 mm core.
315.80 AED
Demountable Transformer Coil, 1000 Turns, 0.3 A, 39.5 Ohms
To fit the EL180820 demountable transformer kit. Fits 40 x 40 mm core.
315.80 AED
Transformer Accessory Kit 1
Used to demonstrate that a step down transformers can produce currents that are large enough to weld metals or boil water.
410.27 AED
Transformer Accessory Kit 2
Lenz's law transformer accessory kit to demonstrate the production of large magnetic fields and Lenz's law damping on pendulums with and without slits.
410.27 AED
Bulb, SBC Cap, Axial Filament, 24 W
12 V, 24 W bulb, with SBC fitting, and axial (vertical) filaments. Suitable for ray boxes. Dimensions 55 x 38 mm (L x Dia)
17.79 AED

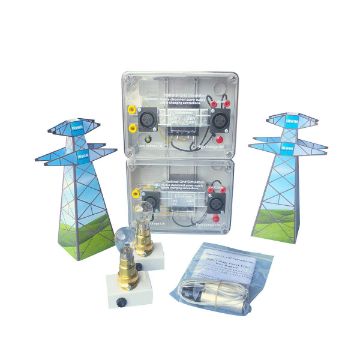

National Grid Simulation Kit
To safely demonstrate the need for high voltage transmission of electricity. This apparatus clearly demonstrates how this is achieved using the interconnected boxes through which pupils can see the components. The high and low voltage sides are clearly indicated, with resistance wires connected to either side for direct comparison of lamp brightness/energy loss. By gripping the insulated cables the energy loss can be felt in the form of heat. There are also voltmeter sockets for measuring the high voltage. Comes complete with two boxes (transmit and receive), insulated resistance wires, two mounted SBC lamps and full instructions. Touchproof, locking high voltage connectors used throughout it is virtually impossible to get an electric shock Clear lid to the casing so pupils can see how it works and trace the circuit Indicators for low/high voltage Voltmeter sockets for measuring the high voltage Supplied with 2 x kits to make up the pylons AC Power supply and Connection wires are not supplied An additional power supply is required to carry out this experiment, capable of supplying 12V at 5A. Also required are 6 x connecting leads.
1660.05 AED
Wire, Extra Flexible, Black, 6 A
Extra flexible stranded copper wire. Supplied in 25 m reel. • PVC insulated • Diameter: 2.8 mm • Max current: 6 A @ 1000V RMS
67.19 AED
Wire, Extra Flexible, Red, 6 A
Extra flexible stranded copper wire. Supplied in 25 m reel. • PVC insulated • Diameter: 2.8 mm • Max current: 6 A @ 1000V RMS
67.19 AED
Flexible Wire, Black, 1.2 mm
This high quality stranded PVC-insulated equipment wire is ideal for general interconnection within apparatus. It is suitable for use with crocodile clips EL18500 EL18502. • 7 strand/0.2 mm tinned copper conductor • Overall diameter 1.2 mm • Current rating 2 A • Rating 1 kV rms 1.4 at 70°C • PVC insulation • Supplied on reels of 100 m
87.35 AED
Flexible Wire, Red, 1.2 mm
This high quality stranded PVC-insulated equipment wire is ideal for general interconnection within apparatus. It is suitable for use with crocodile clips EL18500 EL18502. • 7 strand/0.2 mm tinned copper conductor • Overall diameter 1.2 mm • Current rating 2 A • Rating 1 kV rms 1.4 at 70°C • PVC insulation • Supplied on reels of 100 m
82.21 AED
Iron Wire, Bare, 22 SWG
Please note, this wire rusts very readily and will probably have some surface rust when purchased.
57.31 AED
