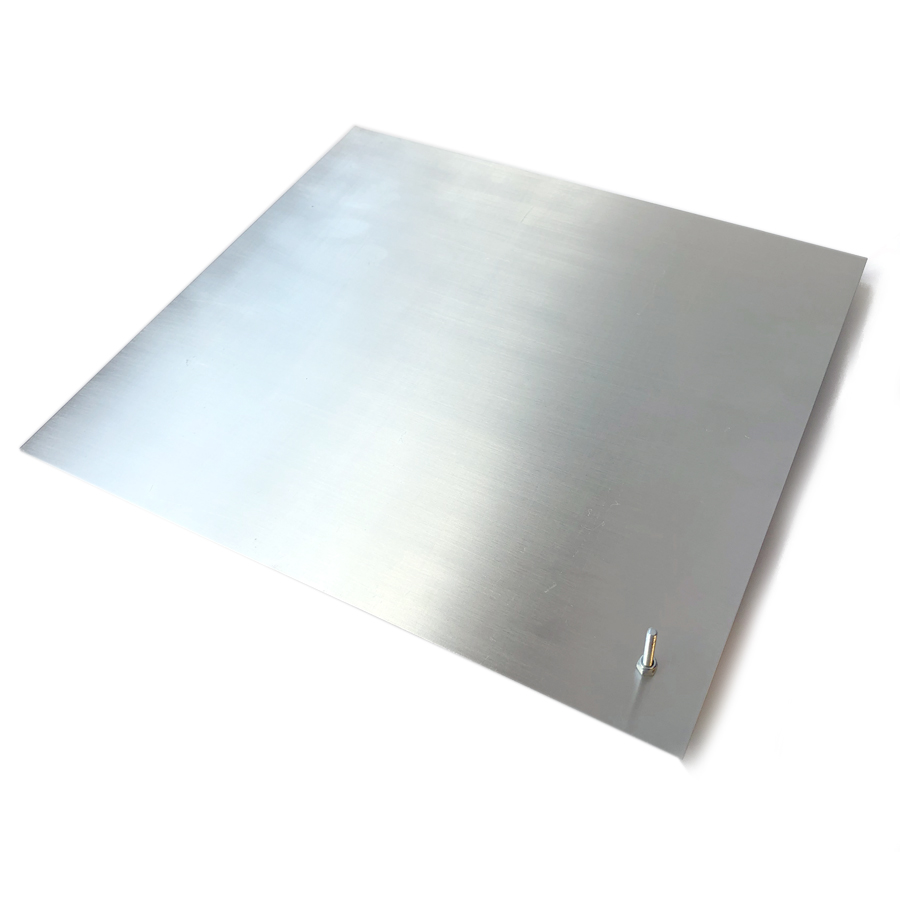

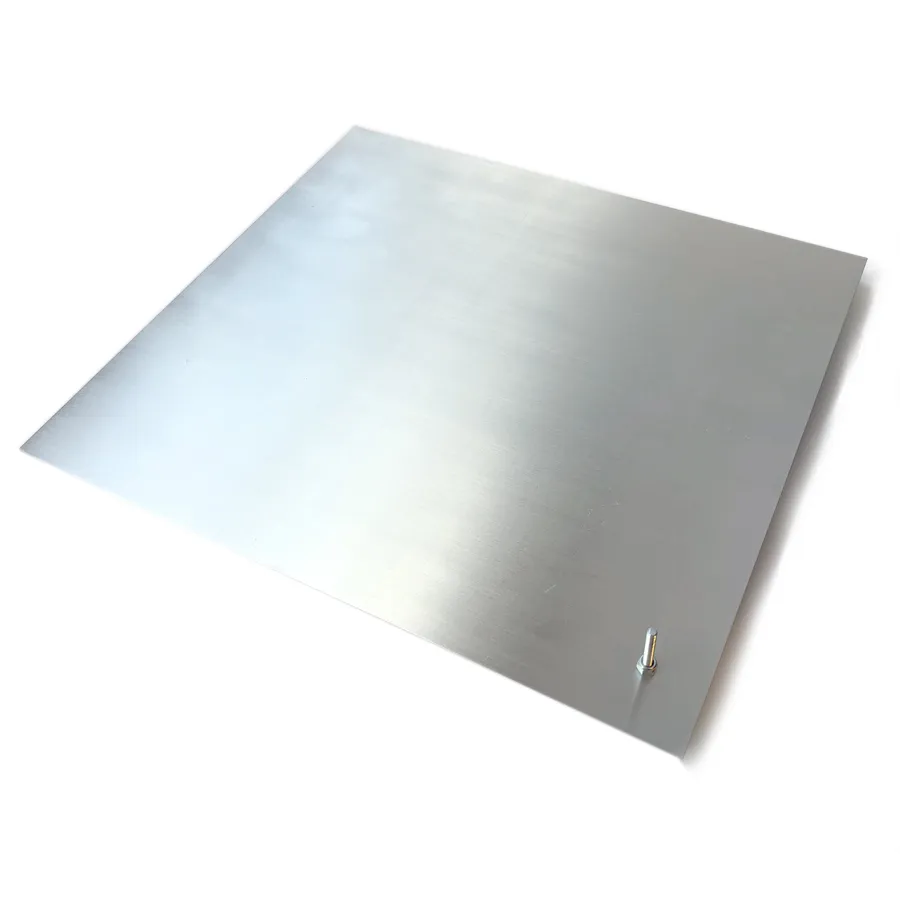

E-Field Grounding Plate

The Earth Grounding Plate is designed for use with The Lascells E-Field Detector but can also be used in any situation where an earthed working surface is required to neutralise electrostatic charge. Place the Grounding Plate on the bench with the E-Field Detector on top. Using the detector Earth Lead connect the green Earth socket on the detector to the metal screw on the grounding plate. Use a connecting lead to also connect from the green Earth socket to a suitable Earth point such as a metal water pipe or similar.
