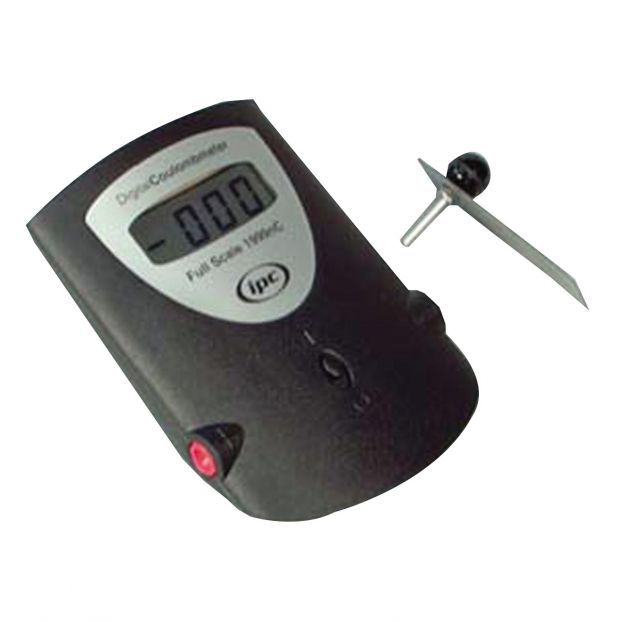

    Coulombmeter Kit

    Manufacturer: Timstar
    For charge detection and measurement. Useful for a wide range of experimental applications including charging by induction, Faraday's ice pails, Coulomb's law and capacitance of an isolated sphere. The 3.5 digit liquid crystal display has 13 mm high digits with wide field of view unobscured by trailing leads. The display also provides indication of polarity and low battery. The unit is exceptionally easy to read. Two colour coded 4 mm sockets are located on the sides for maximum convenience and anti-slip feet are fitted to the base. Low operating current gives expected battery life in excess of 500 hours. Housed in a robust, ABS plastic case. Supplied with charge plate, battery and instructions. • Range:0 to 1999 nC • Resolution: 1 nC • Overload: 10 x full scale • Accuracy: ±10% of full scale • Input Resistance: 100 GΩ • Leakage Current: 1pA (10pA max) • Capacitance: 4.7mF
    SKU: SS018934
    Manufacturer part number: EL81490
    Availability:
    Price: 552.95 AED
    i h h
    Coulombmeter Ipc. For charge detection and measurement. Useful for wide range of experimental applications including charging by induction, Faraday's ice pails, Coulomb's law and capacitance of an isolated sphere. The 3.5 digit liquid crystal display has 13mm high digits with wide field of view unobscured by trailing leads. The display also provides indication of polarity and low battery. The unit is exceptionally easy to read. Two colour coded 4mm sockets are located on the sides for maximum convenience and anti-slip feet are fitted to the base. Low operating current gives expected battery life in excess of 500 hours. Housed in robust, ABS plastic case. Supplied with charge plate, battery and instructions.• Range: 0 to 1999nC• Resolution: 1nC• Overload: 10 full scale• Accuracy: ±10% of full scale• Input Resistance: 100GΩ• Leakage Current: 1pA (10pA max)• Capacitance: 4.7mF
