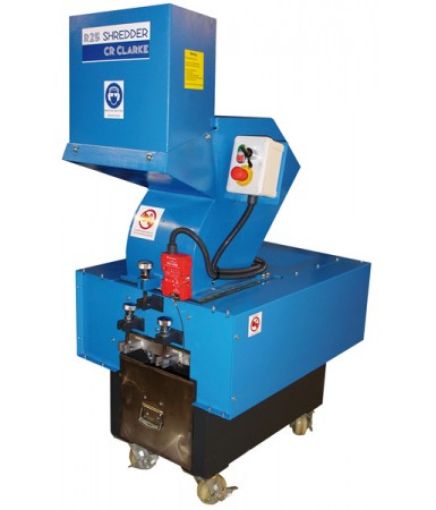

C R Clarke Schred R25 Plastic Granulator Single Phase

The R25 is an industrial quality plastic granulator. Suitable materials for recycling include PP, HIPS, ABS and LDPE. Materials to be granulated are loaded into the hopper at the top of the machine. A combination of static and rotating blades gradually chops the material into smaller and smaller pieces. Once the material reaches a small enough size it passes out through a mesh filter and into a collection bin. The cutting blades are powered by a three phase motor fitted with a phase inverter, allowing operation from a normal 230V electrical supply. When not in use, a lockable cover can be fitted over the inlet chute, ensuring that no unwanted debris enters the machine. The Process: Wash out your old cartons Shred them in the R25 Schredder, reducing their volume by 95% and creating a usable material. At this stage, you can choose to put the waste for normal recycling, or to re-process it within school, in either of two ways: Use it directly in the CR Clarke 25 Injection Moulding Machine. (490-170) Heat it on a mould-plate and then roll it into a new sheet using the R30 Sheet Press (490-048).
