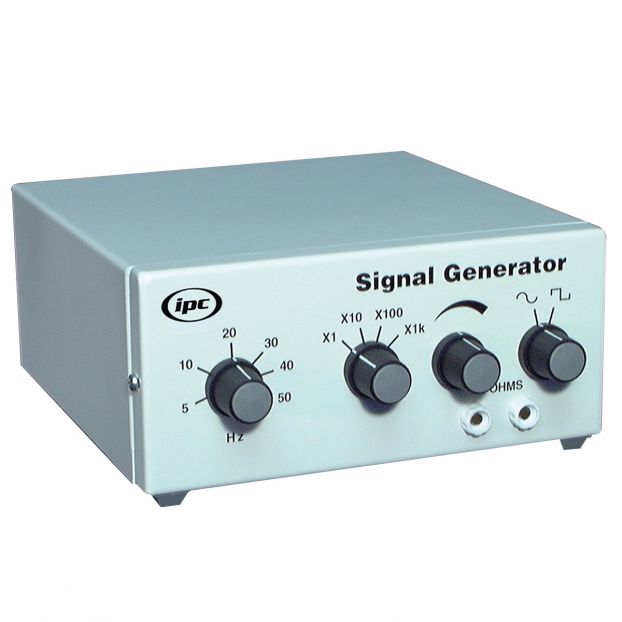

Bench Signal Generator Ipc. Sine and square wave generator. Frequency range 5Hz to 50kHz in four switched ranges plus fine control. Accuracy typically ±10%. The output amplitude is continuously variable from zero to maximum 8V peak to peak with maximum output power 1W into ohms. The output is taken from two 4mm sockets mounted on the front panel. An illuminated on/off switch is mounted on the rear panel adjacent to fused IEC mains inlet. Enclosed in robust metal case with durable powder coated finish. Dimensions (LxWxH): 179 190 85mm.
