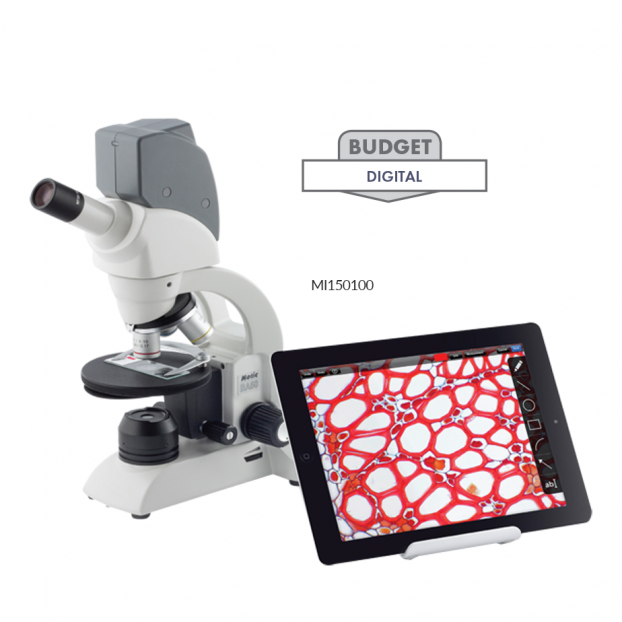

Ba50x Wifi Digital Microscope. Timstar are pleased to introduce the new, versatile BA50-X WiFi digital microscope, which represents the latest in Educational technology. Like the Moticam X, this digital microscope transmits live images to wireless laptops, iOS or Android Tablets. Featuring high-speed, full resolution imaging technology built into the head of the microscope, the BA50-X can be used as normal microscope with the built-in eyepiece, or used to share live images with your class, using WiFi tablets or Windows Laptops.Please note: connection to the microscope camera is exclusively over WiFi, using the microscope's own ad hoc network. The USB port is for power only.Specification:Optical System: Finite optical system, 160 mmObservation tube: Monocular with built in digital type Wi-Fi cameraInclination: 30° inclined, 360° rotatingCamera sensor: CMOS 1/3"" 1.3 MP 1600x1200 pixelsOutput: Wi-Fi transmission up to 1.3 MPEyepieces: WF10X/18 mmNosepiece: Reversed triple revolving nosepieceObjective classification: Achromatic objectives, DINObjectives: 4X/0.10, 10X/0.25, 40X/0.65/SObjective mounting thread: 4/5""x1/36"" (RMS standard)Stage: Gliding stage with ""one-touch"" sample holderStage size: 105 mm (Diameter)Upper limit stop: Upper limit stop pre-set but adjustableCondenser: Built in 0.65 N.A. with disc diaphragmFocus mechanism: Separate coarse and fine focusing systemFine Focus precision: µm minimum incrementZ-axis movement: mmFilter: Built-in frosted glassIllumination: LED 20 mA, 3.5 V, 70 mW with intensity controlTransformer: ExternalPower supply: Charger 100-240 or rechargeable batteriesAccessories included: Calibration slide, dust cover, immersion oil (5 mL), charger and batteriesSoftware: MotiConnect App for iOS and Android, Motic Images Plus 2.0 for PCWeight: 2.75 kgDimensions (L W H): 175 153 334 mm
